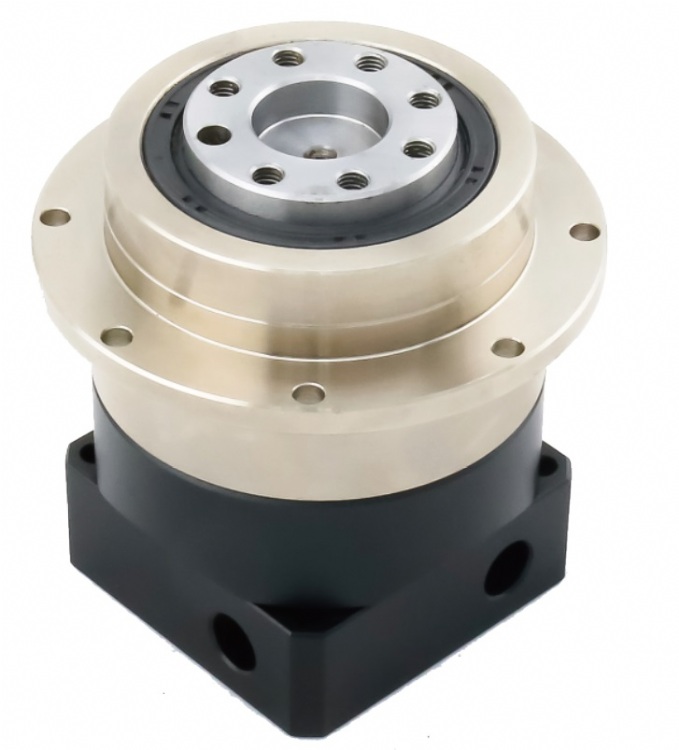

Planetary Gearbox - HDS Series
Model: HDS Series
Category: Machinery Parts and Components / Machinery Parts and Components / Gears
Characteristics
● Helical Gear
● Type: 47 / 64 / 90 / 110 / 140 / 200
● Ratio: 04 / 05 / 07 / 10
● Bearing: Deep Groove Ball Bearing
● Backlash: 1 ~ 5 arcmin
● Motor: Servo Motor
Specifications
Specifciation:
| Model No. | Code | Unit | Ratio | 47 | 64 | 90 | 110 | 140 | 200 |
|
Rated Output Torque |
T2n |
Nm |
4 | 22 | 60 | 160 | 335 | 650 | 1,200 |
| 5 | 20 | 50 | 155 | 333 | 618 | 1,189 | |||
| 7 | 19 | 47 | 142 | 309 | 573 | 1,108 | |||
| 10 | 16 | 43 | 136 | 294 | 549 | 1,059 | |||
| Max. Acceleration Torque | T28 | Nm | 4 ~ 10 | 1.8 Times of Rated Output Torque | |||||
| Max. Output Torque |
T2NOT |
Nm |
4 ~ 10 |
3 Times of Rated Output Torque |
|||||
| Emergency Stop Torque | |||||||||
| Rated Input Speed | n1N | rpm | 4 ~ 10 | 3,000 | 3,000 | 3,000 | 3,000 | 3,000 | 3,000 |
| Max. Input Speed | n1B | rpm | 4 ~ 10 | 6,000 | 6,000 | 6,000 | 5,000 | 5,000 | 4,000 |
| Backlash Ps | - | arcmin | 4 ~ 10 | ≦1 | |||||
| Backlash P0 | - | arcmin | 4 ~ 10 | ≦3 | |||||
| Backlash P1 | - | arcmin | 4 ~ 10 | ≦5 | |||||
| Backlash P2 | - | arcmin | 4 ~ 10 | ≦7 | |||||
| Tortional Rigidity | - | Nm/arcmin | 4 ~ 10 | 6 | 14 | 30 | 86 | 155 | 450 |
| Max. Radial Force | F2rB | N | 4 ~ 10 | 1020 | 1,260 | 4,230 | 6,360 | 7,035 | 17,600 |
| Max. Axial Force | F2aB | N | 4 ~ 10 | - | - | 7,330 | 11,500 | 18,600 | 36,800 |
| Service Life | LH | hr | 4 ~ 10 | S5 Cycle Operation: >30,000 (S1 Continuous Operation: >15,000hrs) | |||||
| Efficiency | η | % | 4 ~ 10 | ≧97 | |||||
| Operating Temperature | - | °C | 4 ~ 10 | -25°C ~ +90°C | |||||
| Lubrication | - | 4 ~ 10 | Fully Synthetic Grease | ||||||
| Protection Class | - | 4 ~ 10 | IP65 | ||||||
| Mounting Position | - | 4 ~ 10 | Any | ||||||
| Noise Level | - | dB | 4 ~ 10 | ≦56 | ≦58 | ≦60 | ≦63 | ≦65 | ≦67 |
| Weight | - | kg | 4 ~ 10 | 0.7 | 1.4 | 4.2 | 7.4 | 13.9 | 40.12 |
Order Code:
| HDS | - | 090 | - | 10 | - | S2 | - | P1 | - | F1 |
| A | B | C | D | E | F |
A: Model Name
B: Type
47 / 64 / 90 / 110 / 140 / 200
C: Ratio
1st Stage: 04 / 05 / 07 / 10
D: Output Shaft Type
S2: Hollow Shaft
E: Backlash
PS: ≦1 arcmin
P0: ≦3 arcmin
P1: ≦5 arcmin
P2: ≦7 arcmin
F: Flange Type
Please refer to the page of Resources, Product Documents, Gearbox
