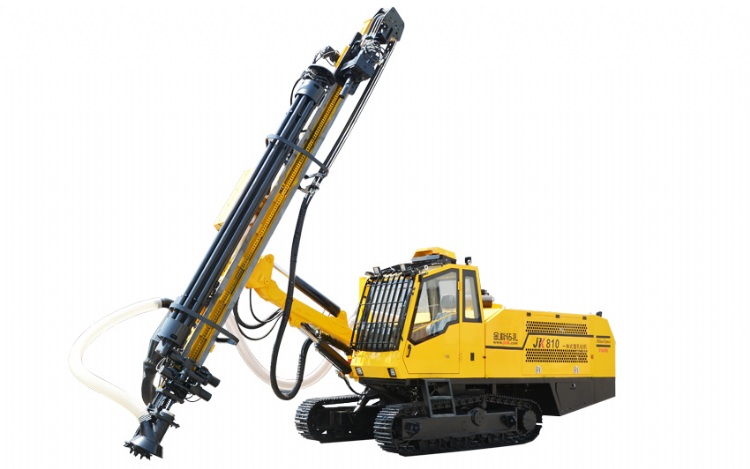

JK810 All In One Hydraulic DTH Drilling Rig
Model: JK810
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Others
Characteristics
With less price and more equipment, JK810, the most cost-effective representation product of JK Drilling and Atlas Copco as the solution to the integration of drilling rig and air compressor, is set to revolutionize your imagination.
Specifications
JK810 All In One Hydraulic DTH Drilling Rig
With less price and more equipment, JK810, the most cost-effective representation product of JK Drilling and Atlas Copco as the solution to the integration of drilling rig and air compressor, is set to revolutionize your imagination.
JK810 is an All-In-One hydraulic DTH drilling rig, which brings you more automation, higher working efficiency, better reliability and simpler operation. The FOPS-approved cabin and automatic pipe handling system come standard. Heavy-duty undercarriage with wide tracks ensures both extreme maneuverability and improved safety. The hydraulic dust collecting system meets the latest environmental protection regulations and it's a reliable solution to realize the modern green mining.
|
General |
Weight |
kg |
14300 |
|
Length |
mm |
9920 (transport) |
|
|
Width |
mm |
2400 |
|
|
Height |
mm |
3300 |
|
|
Undercarriage |
Track width |
mm |
350 |
|
Ground clearance |
mm |
≥400 |
|
|
Track oscillation |
° |
±10° |
|
|
Walking speed |
km/h |
2 (low) / 3 (high) |
|
|
Grade ability |
° |
20° |
|
|
Engine |
Model |
QSL8.9-C360-30 |
|
|
Type |
Water-cooled six-cylinder EFI diesel engine |
||
|
Rated power |
kw/rpm |
264/2100 |
|
|
Fuel tank capacity |
L |
450-500 |
|
|
Air compressor |
Model |
Atlas Copco two-stage rotary screw air compressor |
|
|
Working pressure |
bar |
20 |
|
|
Max. FAD |
m3/min |
18.5 |
|
|
Rotary motor |
Rotation rate |
rpm |
0-85 |
|
Max.rotation torque |
Nm |
3300 |
|
|
Feeding method |
Hydraulic motor + Chain |
||
|
Feeding force |
kN |
12 |
|
|
Lifting force |
kN |
18 |
|
|
Feed |
Feeding stroke |
mm |
4840 |
|
Feed extension |
mm |
1100 |
|
|
Drill pipe changer |
Drilling diameter |
mm |
Φ90 - Φ150 |
|
Drilling depth |
m |
28 |
|
|
Pipe diameter |
mm |
Φ76 |
|
|
Pipe length |
m |
4 |
|
|
Pipe capacity |
piece |
6+1 |
|
|
Hammer specs |
|
4" - 5" |
|
|
Dust collector |
Collecting method |
Hydraulic dust collecting |
|
