Specifications

Advantages of RICHI's new wood pellet machine：

1) The pressure roller and bearing are heightened and heavier to improve the service life of the pressure roller bearing;

2) The bearing chamber and the gearbox are lubricated with oil separately, and the bearing chamber lubrication system adopts a high temperature resistant transparent pipeline and is equipped with a filter to prevent sludge from entering the gearbox and improve the service life of the gearbox;

3) The bearing chamber and the gearbox are connected by a spline shaft, which is convenient for disassembly and maintenance, and the spline connection shaft is made of high-strength alloy steel to improve the service life;

4) The integrated oil pump adopts a booster pump (driven by the main motor), and a separate oil pump motor is no longer required;

5) The gear box is customized by specialized manufacturers, with high gear machining precision and novel and beautiful appearance.

The biomass granulator (granulator) produced by Richi Machinery is a stereotyped patented product that RICHI has carefully developed in China. It absorbs the essence of domestic and foreign granulators, and the heart part is a "two-layer mold" with a unique assembly structure; and the "pressure wheel" is made of high-alloy wear-resistant materials, and the life of wearing parts is multiples of similar products; transmission structure grease Automatic filtering, lubrication in place. It has the characteristics of unique design, high efficiency, strong wear resistance, etc., which fills the gap of vertical feeding of domestic ring die pellets and reaches the advanced level abroad.

Biomass fuel is the use of corn stalks, wheat straw, straw, peanut shells, corn cob, cotton stalks, soybean stalks, chaff, weeds, branches, leaves, sawdust, bark and other solid wastes of crops as raw materials. Pressurized, densified, and formed into small rod-shaped solid particle fuel. Pellet fuel is made by extruding raw materials such as wood chips and straws by pressing rollers and ring die under normal temperature conditions. The density of raw materials is generally about 0.6-0.8, and the density of the formed particles is greater than 1.1, which is very convenient for transportation and storage. At the same time, its combustion performance is greatly improved, which brings certain employment problems and economic benefits.

The main purpose of biomass pellet machine：

Civil heating and living energy: high fuel utilization rate and easy storage.

Biomass industrial boilers: As the main fuel for industrial boilers, it can replace coal and reduce atmospheric emissions and pollution.

Power generation: can be used as fuel for thermal power generation

Features of Classic Sawdust Pelletizer:

1) Adopt vertical feeding, no arch, easy to dissipate heat.

2) The mold is static, the pressure roller rotates, and the material is centrifuged and evenly distributed around.

3) The mold has two layers, which can be used for both upper and lower parts, which can reduce costs and increase efficiency, and achieve high output and energy saving.

4) Ring-shaped mold, vertical structure, is conducive to heat dissipation and cooling in the granulation chamber.

5) Independent frequency conversion discharge device to ensure the forming rate of pellets.

5. Pre-sales service: provide you with project design, process design, formulate the purchase plan for your machinery and equipment, design and manufacture products according to your special needs, and train technical operators for you.

6. In-sale service: Accompany you to complete the acceptance of the equipment, assist in formulating the construction plan and detailed process.

Seven, after-sales service: the company sends technical personnel to the scene to guide equipment installation, commissioning and training operators. In terms of the price of sawdust fuel pellet machine, the company will give a big discount to the price of pellet machine for customers who buy in good faith. In terms of payment methods for wood pellets, we can also provide installment payment services for wood pellets.

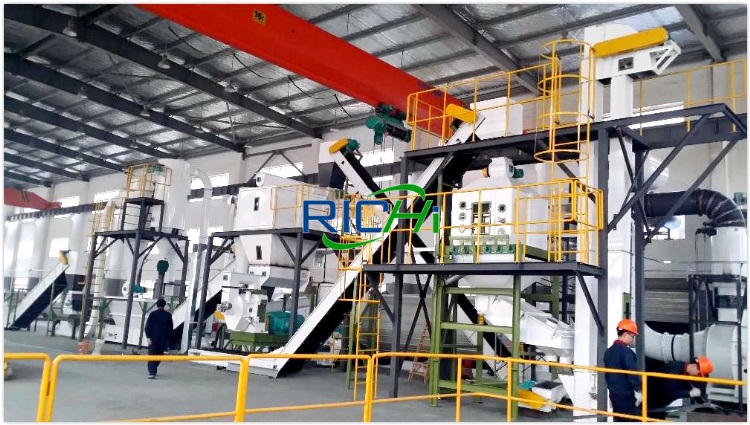

RICHI MACHINERY biomass wood pellet plant cases：

Indonesia 1-1.5T/H Wood Pellet Line

Iceland 1-1.5 T/H Wood Pelleting Line

Congo 1-1.2 T/H Wood Pelletizing Plant

Poland 2-3T/H Waste Tire Fiber Pellet Mill Plant

Canada 2-3T/H Full Automatic Biomass Wood Pelleting Plant

TAIWAN 1-2T/H Biomass Wood Pellet MaKing Plant

Biomass industrial 10 T/H wood pelleting plant project in Mexico

2T/H Wood Pellet Process Line In Netherlands

5T/H Wood Pellet Mill Factory In Austria

Australia 2-2.5 T/H Super Quality Biomass Wood Pelleting Plant

Brazil 1-2 T/H Best Price Wood Pellet Processing Plant

Ukraine Small Capacity 500-700KG/H Beech Wood Pelletizing Line

Germany 2-2.5 Tons/hour Computer Control Wood Pelleting Plant

USA Large Industrial 10 Tons/Hour Wood Pelleting Plant

UK 5-6 T/H Natural Bentonite and Attapulgite Cat Litter Pellet Making machine

5 Tons Per Hour Biomass Pellet Plant Project In China

8-9T/H New Design Completely Biomass Wood Pellet Plant In China

3-5TPH Rubber Wood Pellets Production Line In China

1-1.5T/H Complete Wood Pelleting Plant Project In Lebanon

Romania 2-2.5TPH Customized Biomass Wood Sawdust Pelleting Plant Project With CE

New Design Automatic Running 2T/H Hops Pelletizer Plant For 2000T/A Brewery Craft Beer Production Project In China

60 Tons Per Day Multi-Agricultural And Forestry Wastes Biomass Pellet Plant Project In China

12-13 Tons Per Hour Industrial Biomass Straw Wood Pellet Factory Project
