CH Series Ash-Flushing Pump
Model: CH Series Ash-Flushing Pump
Category: Machinery Parts and Components / Machinery Parts and Components / Vacuum Pumps
Characteristics

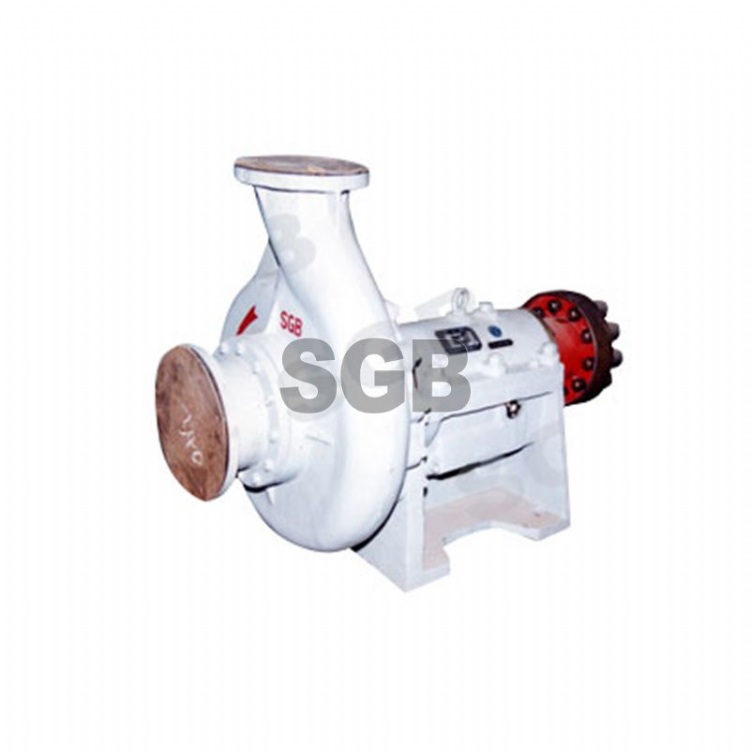

CH Series Ash-Flushing Pump
Specifications
Product Description
- Single case, horizontal version pump
- Wet parts such as casing, impeller, liner plate in anti-abrasion high chrome cast iron alloy.
- Hydraulic optimization design, high-efficient, energy-saving and stable operation
Technical Specifications
Performance and main Technical Datas of CH Series Pumps
Type |
Allowable |
Clear water |
Particle max. Size handled (mm) |
Pump weight (kg) |
||||
Q Capacity (m3/h) |
H Head (m) |
n Speed (r/min) |
Max.eff. (%) |
(NPSH)r (m) |
||||
150CH-F50 |
250 |
156-719 |
18.5-96.2 |
700-1480 |
76.0 |
2.5 |
/ |
1150 |
