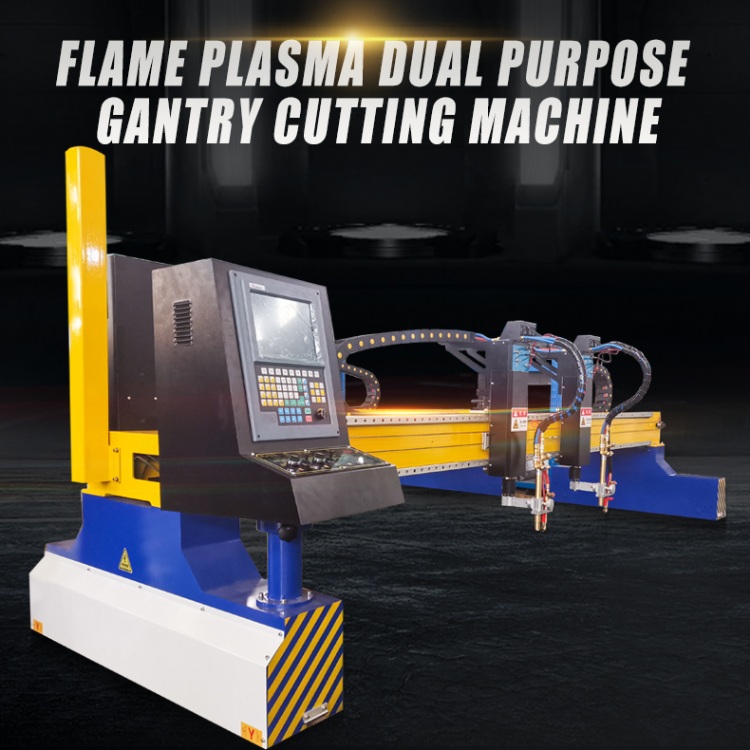

GANTRY CNC CUTTING MACHINE
Model: TPL2560
Category: Machine Tools / Welding and Cutting Machines / High Frequency Metal Welding, Brazing & Soldering Machines
Characteristics
Gantry CNC cutting machine are more stablethanportable and cantilever CNC cutting machines, It can add multiple cutting torches and even realize multi head straight strip cutting.
Compared with the Portable CNC cutting macchine,it has the advantage as below:
The industrial control machine and motion control card cooperate to complete the control function of the control system. The motor driver of the control system can realize chopping constant current subdivision drive, improve the motor motion accuracy, and better solve the heating problem of high torque drive. The peripheral control circuit is composed of PLC and relay. Its output can control the solenoid valve and contactor coil of the gas circuit to realize the sequential control of the gas circuit. CNC flame cutting machine is a kind of high-efficiency, high-precision and reliable thermal cutting equipment which combines computer control, precision mechanical transmission, oxygen and gas cutting technology.It can be aslo connected with plasma to be as plasma cutter method.
Specifications
TECHNICAL DATE:
Model number: TPL 3*6
Cutting range:2500*5500mm
Cutting speed:up to 6000 mm/minute
Cutting thickness: 1-30mm for plasma cutting and 5-150mm for flame cutting
Accuracy: 0.2mm
Working voltage: AC 220/380V ±10% 50HZ
Rated power: 800W ( plasma source and air compressors are not included)
