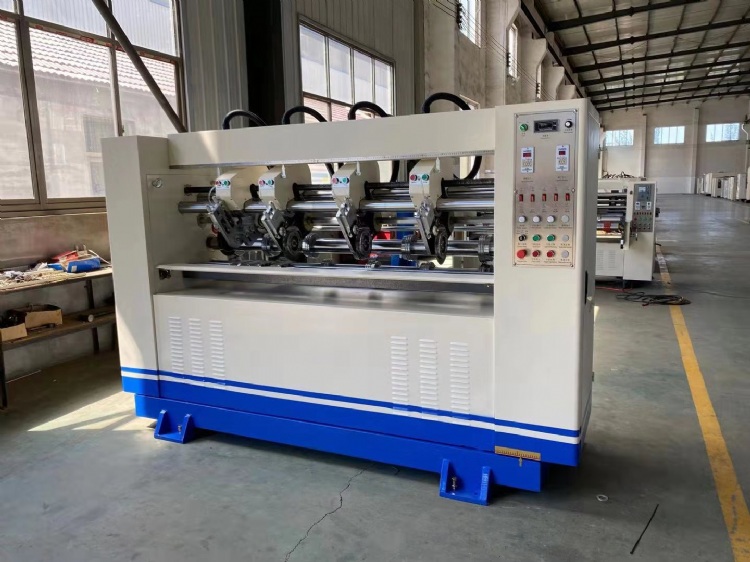

NC-Cut Off Machine Corrugated Cardboard Cutting Machine 7 Ply Corrugated Cardboard Production Line
Model: --
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Carton Machine, Carton Loading Machine, Carton Sealing Machine
Characteristics
Yangli Corrugated Cardboard Cutting Machine Maximum working width: 1400 mm; Operation direction: left or right (according to customer's factory); Maximum mechanical speed: 150 m/min; Length: 800 mm; Paper cutting accuracy: 1mm for constant speed, 2 sets for uneven speed.
Specifications
Yangli Corrugated Cardboard Cutting Machine Maximum working width: 1400 mm; Operation direction: left or right (according to customer's factory); Maximum mechanical speed: 150 m/min; Length: 800 mm; Paper cutting accuracy: ±1mm for constant speed, ±2 sets for uneven speed.
Conventional technical parameters:
1. maximum working width :1400 mm
2. operating direction: left or right (based on customer plant)
3. Maximum Mechanical Speed :150 m/min
4. Mechanical Configuration: Crosscutting of Computer Spiral Knife
5. Minimum Paper Cut Length :500 mm
6. Maximum Paper Cut Length :800 mm
7. Paper cutting accuracy: uniform speed ±1 mm, non-uniform speed ±2 equipment
8. size: Lmx4.2*Wmx1.2*Hmx1.4
9. Single weight: maximum Kg 3500
Roller diameter parameters:
1. cross-cut upper and lower cutter shaft center distance :F216 mm
2. front and lower conveyor roller diameter F156 mm
3. The diameter of the back-down conveyor roll :F156 mm
4. before the top press roll diameter: mm 70
5. Top press roller diameter :F70 mm
Note: All roller shafts are ground, and the surface is plated with hard chromium (except upper and lower tool shafts).
Power motor and electrical parameters:
1. Main drive motor powerG22KW
2. Power of Paper Transmission MachineG3KW
3. Lubricating oil pump motorG0.25KW
Our company specializes in the production of corrugated cardboard production lines, carton production lines, we provide customized services, come to consult us!
