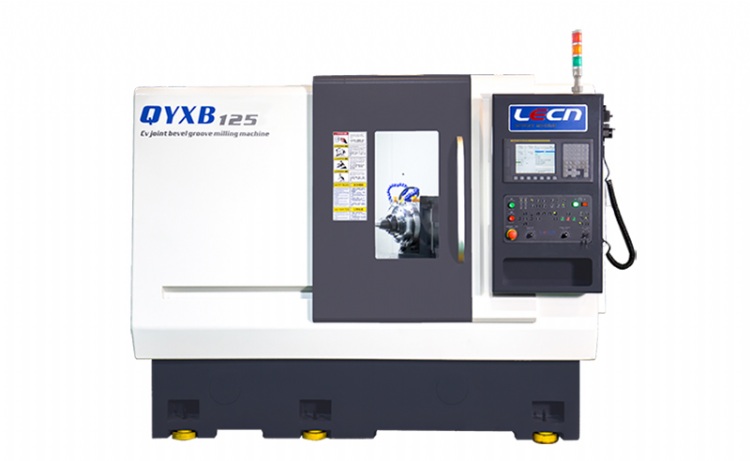

Inner Race Milling Machine QYXB125
Model: QYXB125
Category: Machine Tools / Milling Machines / CNC Milling Machines
Characteristics
Inner Race Milling Machine QYXB125
Specifications
Inner Race Milling Machine QYXB125
Product Description
Single station inner race milling machine with one-time clamping and processing of multiple BJ/UFJ/SX/DOJ grooves, 20-65 mm processing of groove diameter, which is suitable for the milling of inner race. High efficiency, hard milling instead of grinding，it can carry with truss or joint robot and automatic line.
Technical Parameters
|
ITEM |
QYXB125 |
|
Max Clamping Diameter, mm |
Ø35 |
|
Max Work piece Height, mm |
60 |
|
Groove Diameter Scope, mm |
Ø20-Ø65 |
|
Diameter Of Steel Ball Scope, mm |
Ø12.7-Ø22 |
Quickly understand how to choose a rolling machine
We have 30,000 square meters of standard workshops and modern parts processing, complete machine assembly, test and inspection, painting and other technological equipment. The sales and service network covers all major industrial towns and manufacturing areas in the country, and has agencies in the UK and Southeast Asia to ensure efficient and efficient services for customers.
