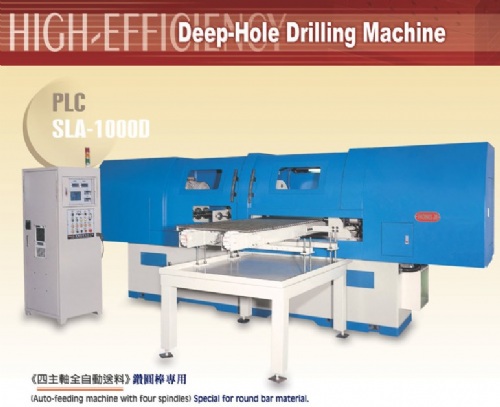

High-Efficiency Deep Hole Drilling Machine(Gundrill Machine)
Model: SLA-1000D
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Feeding Equipment
Characteristics
Special for round bar material. (Auto-feeding machine with four spindles )
Mass-production Type, Automatic Workpiece-feeding system
The machine offers mass production in drilling single size of round bar. Job-doing efficiently.
With auto-loading and unlaoding system, operator just needs to put workpieces on the conveyer. Then all work will be done automatically.
Block of conveyer is made by the material from Germany. The material can prevent the damage from oil and crash.
Equipped with the motor in the rear of machine, the motor drives workpiece counter-rotating to increase concentricity.
Full cover is as the standard accessory to prevent oil-spray to keep the working area clean.
Special using drum-type paper filter in the filtration system.
Specifications
※Capacity
→Number of drill spindle: 4 Quill
→Range of drilling dia.: 3 ~ 15mm
→Max. depth of drilling: 1,000mm
※Working table stroke
→Effective drill stroke (Z-Axis): 1,000mm
※Drive motor
→Spindle motor: 5.5kw x 2
→Z-Axis: 1.3kw
→Chip conveyor: 1kw
→Workpiece driven motor: 0.75kw x 2
→Coolant pump: 7.5kw x 4
→Automatic lubrication: 0.1kw
→Total machine power: 57kw
※Speed
→Drill feed range: 10 ~ 150 mm/min
→Spindle speed range: 0 ~ 6,000 rpm
※Hydraulic system
→Coolant pump pressure range: 30~70 kg/cm²
→Pump output range: 30 L/min
→Coolant tank capacity: 2600 L
※Net weight: 5,000kgs
※Machine dimensions (Approx): 6,100 x 4,000 x 1,910mm
※Standard accessories
→Paper filter
→Magnetic separator
→High pressure oil pump
→Tool box
→Leveling screw
※Special accessories
→Coolant chiller
→Coolant oil
→Gun drill
→Guide bush
→Gun drill grinder
→Rubber bush
