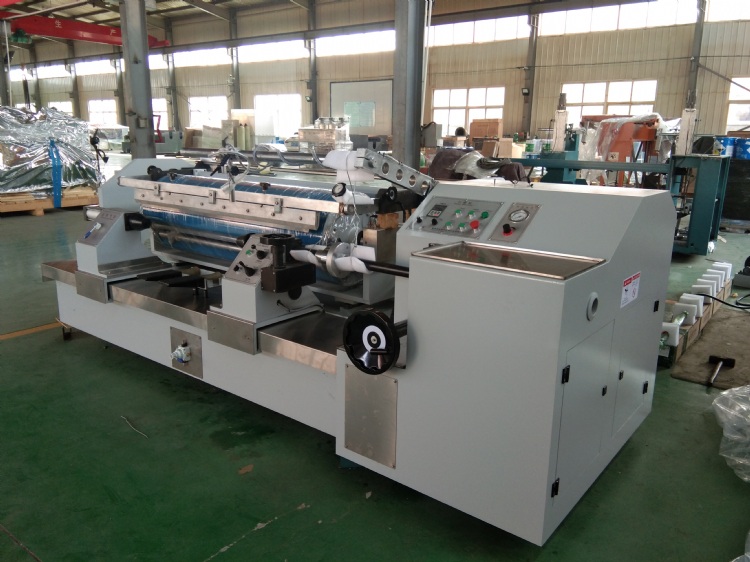

Rotogravure Proofing Machine Gravure Proof Press Proofer for Gravure Cylinder Proofing



Model: HY002

Category: Packaging, Printing, Food & Pharmacy Machinery / Other Machinery / Other Machinery



Online Inquiry





Characteristics



Machine Specification XYE1500 Remarks
Diameter of drum Φ900mm Can be changed according to customer requirements
Length of drum 1500mm
Max Diameter of cylinder Hollow cylinder Φ420mm
Min Diameter of cylinder Hollow cylinder Φ160mm
Max length of cylinder 1500mm
Min length of cylinder 420mm
Proofing speed 60m/min Flow Valve Speed Regulation
Cleaning speed of cylinder 70r/min
Tailstock moving speed 342mm/min
Proofing Pressure 1.5-2.5t Pressure Regulating Valve Regulation
Fine-tuning ±20mm
Doctor blade press 50N-100N Pressure Regulating Valve Regulation
Total power 7.5KW
Size(L*W*H) 4.0mx2.3mx1.6m
Weight 6.0t
