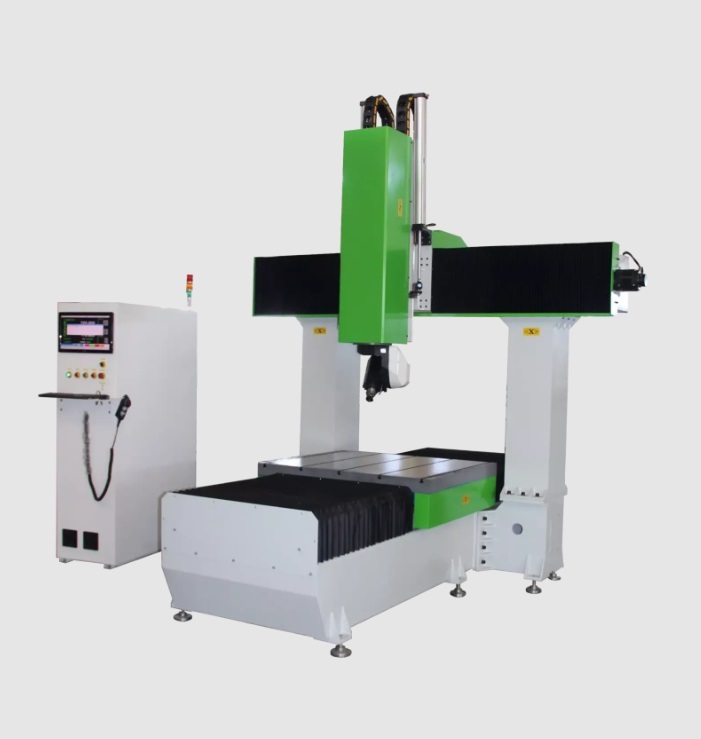

5 Axis CNC Router ST1530-5A
Model: 5 Axis CNC Router ST1530-5A
Category: Machine Tools / Lathes / CNC Lathes
Characteristics
5 Axis CNC Router ST1530-5A
Specifications
5 Axis cnc router, able to move front-back,left-right, up-down and rotated 270 degrees.
Machine FeaturesG
With OSAI numerical control system, HIWIN square guide, Yasakawa servo motor and driver, HSD spindle,the machine is of high speed and high machining accuracy;
Z axis travel can be heightened to 1.2 meters, so CNC Router is very suitable for processing large- scale three dimensional surface, special for cars model.
Application:
Various large metalloid moulds, especially suitable for automotive foammold, wooden ship model, aviation wooden mold, rail wooden mold and train wooden mold.
3D surface engraving and shape cutting of large- scale instruments.
Wood ,EPS,resin,plaster,other non-metal carbon mixed compound,stone artficial stone, graphite, PVC, etc.
Technical Parameters
Model |
ST1530-5A |
Traveling Size |
3000*1500*500mm |
Transmission |
X/Y rack and pinion drive, Z ball screw drive |
Traveling Speed |
≥45000mm/min |
Working Speed |
≥20000mm/min |
Spindle Power |
HSD 9 kw ATC spindle |
A/C Axis(Rotation axis of XYZ) |
±270° |
Spindle Speed |
24000r/min |
More information please visit: sequoyatec.com
