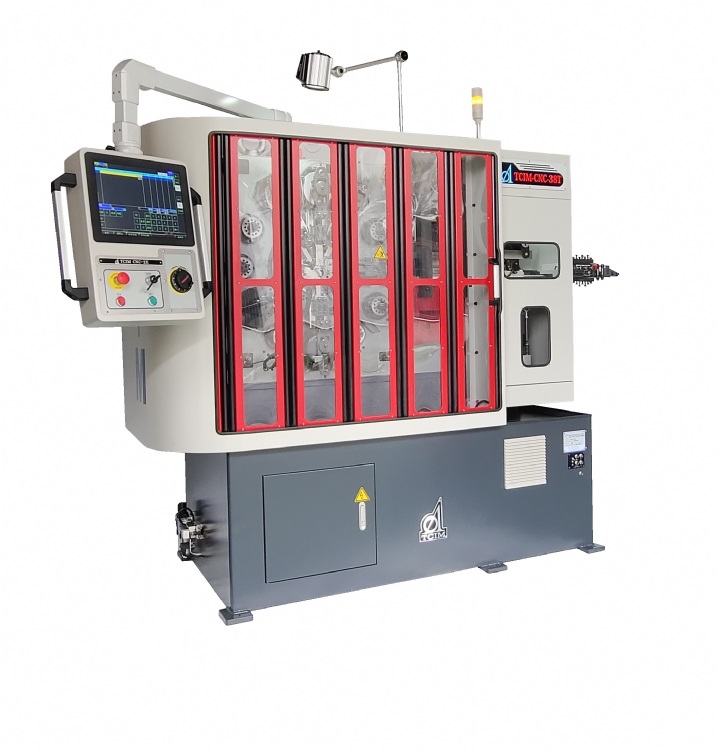

wire strip forming machine
Model: TCIM-CNC-38T1
Category: Machine Tools / Others / Other Machinery
Characteristics
1.Schneider Servo System
2.Equipped with automatic lubrication system to ensure the gear lifetime.
3.Double cam slide to enforce slide return
Specifications
|
Wire Diameter |
1.0-4.0 mm |
|
Thickness of Wire |
0.3-1.5 mm |
|
Width of Wire |
40 mm |
|
Hardness of Wire ( Carbon) |
80C |
|
Axes |
1 |
|
Max.Production Rate (pcs/min) |
150pcs/min |
|
Max.Feed Length |
250 mm |
|
Press Capacity (ton) |
20 ton |
|
Slide Capacity (ton) |
3 ton |
|
Press Stroke (mm) |
14 mm |
|
Slide Stroke (mm) |
42 mm |
|
Slide Accessory |
6 |
|
Machine Dimension |
1920*900*1900 mm |
|
Machine Weight |
1900 kgs |
