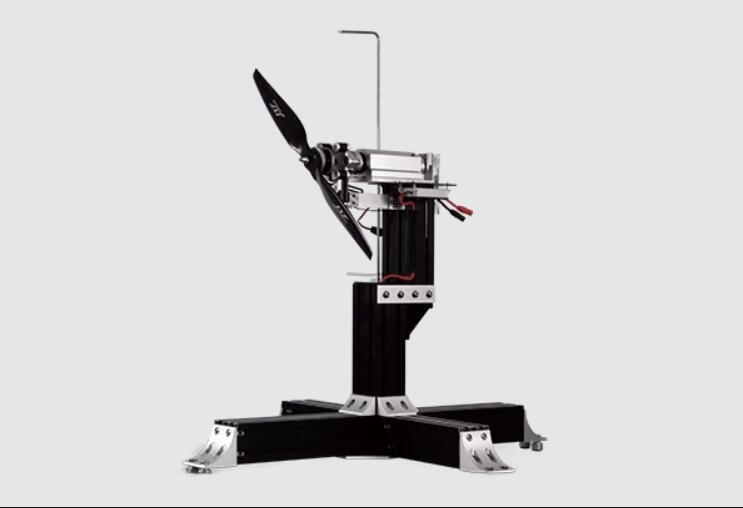

LY-30KGF Thrust Stand
Model: LY-30KGF Thrust Stand
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics
LY-30KGF Thrust Stand
Specifications
LY-30KGF motor and propeller test stand is designed to test medium UAV motors and propellers. It allows you to test up to 30kg of thrust for max 40” propeller. The test stand will help you to figure out the most efficient drone propulsion system and extend the flight time.
The Wing Flying thrust tester is capable of testing the thrust, torque, voltage, current, RPM, motor and propeller efficiency of your drone propulsion system.
|
Suggested Propulsion System |
5-20kg thrust |
|
Max Thrust |
30KG |
|
Max Propeller |
40inch |
|
Torque |
20 N•M |
|
Current |
0-150A |
|
Voltage |
5-65V |
|
RPM |
60-150000 RPM |
For more details please click here
