Angle shaft
Model: BXR、BHR
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Speed Reducers
Characteristics

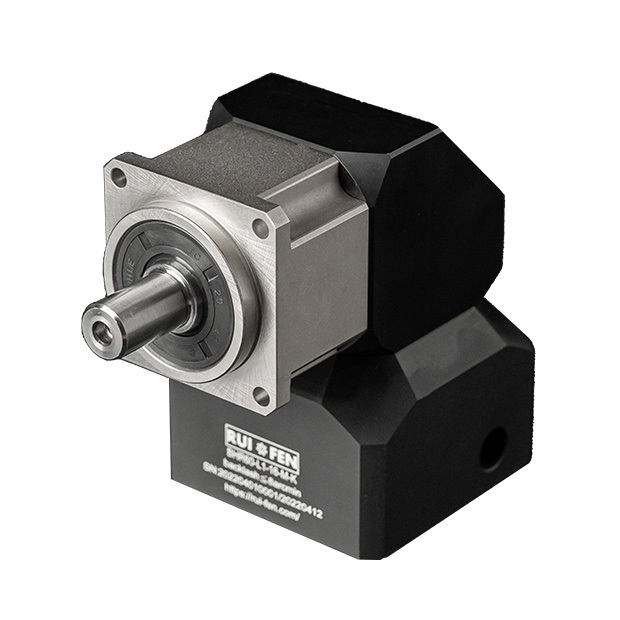

Planetary reducer - low backlash type BHR
Planetary reducer-low backlash type BHR, belongs to low backlash type corner reducer (precision corner reducer), helical gear transmission, standard backlash≦8 arc minutes, optimal backlash≦6 arc minutes, under full load The efficiency can reach 94~98%, which can effectively increase the torque of the servo motor and reduce the output speed. Reducer (gearbox) casing and inner ring gear are integrally formed and integrally formed planetary gear fixed frame and output shaft, precision machining planetary gear Inner planetary gear adopts helical gear, the transmission operation process is smoother and quieter, and full needles are arranged in the planetary gear hole, the maximum size frame number is 220mm. Most suitable for occasions that require precise repeat positioning and improved performance output.
