Specifications

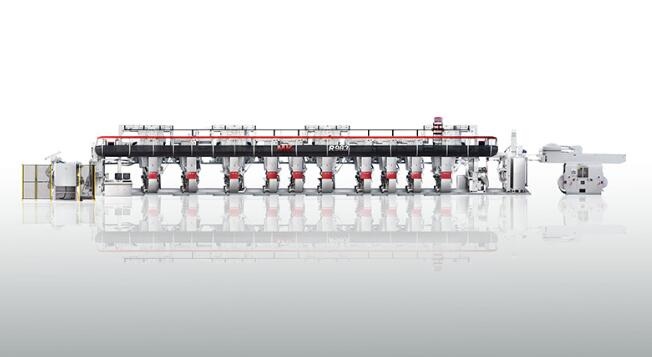

The Web-fed gravure printing MK R983 provided by MK is of high cost-performance. With the mature modular architecture, the customer can optimize the configuration of the unwinder unit, printing unit and sheeter depending on the diversified requirements.

Product Features

Unwinder

Two unwinding stations with the motorized reel braking

"Zero speed" non-stop auto web splicing

Butt-to-butt splicing with pneumatic expandable shaft

Splice web width from 400-850mm, available for various products

Doctor Blade

Sliding on ball-bushings applied to eliminate the stick-slip problem

Independently adjustable in height, parallelism and angle

Doctor blade can tilt backwards to facilitate replacement

Ink Trolley

Overall Stainless steel

Immersion type inking system with gathering pan and level pan

adjust height by handwheel

30-liter ink tank capacity

Demountable electrical ink pump

A.C Motors with Electronic Line-shaft

Independent drive, stable printing and accurate register

Minimize waste for start-up and transient conditions

Motor-driven lateral auto-adjustable stroke ±10mm

Rewinder

Reel fixing with expandable shaft

Independent drive for rewinding bracket

Worm type central rotary reducer with reel core locking

Register Device

Automated sidelay register control system

Special screened cable and remote control panel

High-speed register with less waste.

Register accuracy ± 0.1mm

Dancing Roller

Adjust Web tension by high precision motor

Rapid response and quick adjusting

Technical Parameter

High-Speed Gravure Printing Machine

Throughout the use of a central control system, including PLC control, touch screen interface, technical operators can easily and accurately monitor the required printing quality.

This high speed rotogravure press can reach printing speed up to 350m/min. For clients who have requirement for frequent mass production, this high speed rotogravure press can be your perfect choice.
