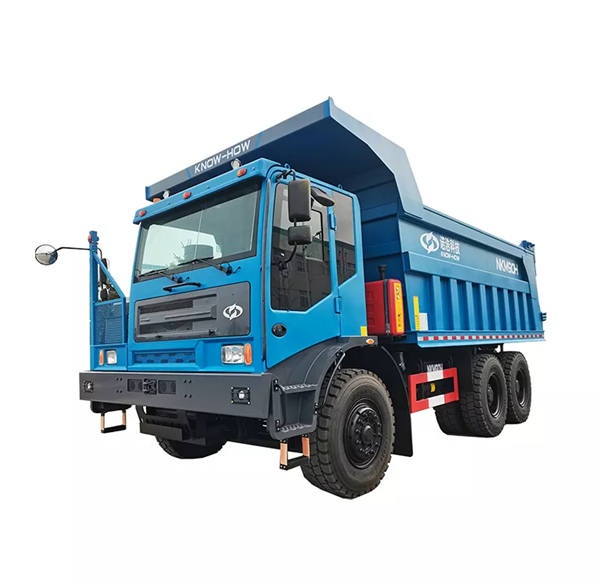

NKM90H diesel dump truck
Model: NKM90H diesel dump truck
Category: Machinery Parts and Components / Machinery Parts and Components / Hand Wheels and Handles for Machinery
Characteristics
NKM90H diesel dump truck
Specifications
Product Parameters
NKM90H 90 tons,rated loading 60 tons,
420hp strong power, diesel mining dump truck
Equipped FASTGEAR Mechanical automatic transmission 7DS220/MT
|
Vehicle Spec. |
Unit |
NKM90H |
|
Total Vehicle Weight |
KG |
90000 |
|
Rated Loading Weight |
KG |
59000 |
|
Tank Cubic Volume |
Cubic Meter |
33(Flat),36(Stack) |
|
Axle Loading Front/Middle/Rear |
t |
20+35+35 |
|
Engine Type/HorsePower |
Hp |
YC6K480-GT30(480hp) |
|
Gearbox type |
/ |
Faust 7DS220/MT(Mechanical Transmission) |
|
Steering system |
/ |
Full hydraulic steering |
|
Suspension System(Front/rear) |
/ |
Hydro-pneumatic spring/balance shaft general hanging |
|
Braket System |
/ |
Welded rigid tank frame /480x140 |
|
Vehicle Dimension |
mm |
9100*3450*4130 |
|
Driven Type |
/ |
6*4 |
|
Max Speed |
km/h |
43 |
|
Min Turning Radius |
m |
11.5 |
|
Vehicle Length |
mm |
9100 |
|
Front Middle Axle wheel base |
mm |
3800 |
|
Middle Rear Axle Wheel Base |
mm |
1560 |
|
Vehicle Height |
mm |
4130 |
|
Vehicle Width |
mm |
3450 |
|
Rear Wheel distance |
mm |
2526 |
We are one of the leading dump truck manufacturer, Our KNOW-HOW dump truck has high quality and competitive price.
