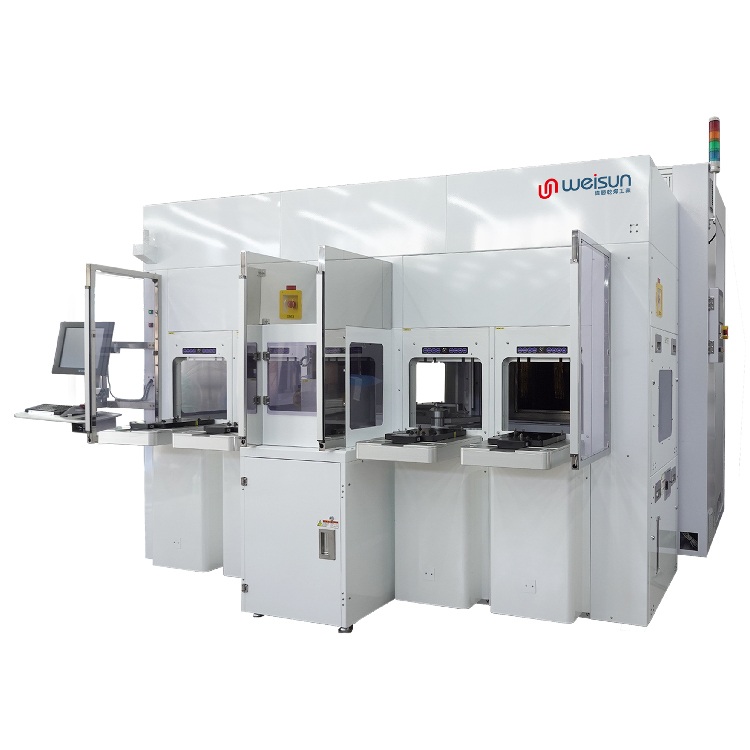

Full-Automatic High-Temperature Dust-Free Oxygen-Free Oven
Model: AQHWOL
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Dryers
Characteristics
Description
. The fully automated oven can be paired with EFEM or robotic arms, and relevant data can be directly uploaded to the server, achieving the goal of unmanned factory.
. Built-in sensors.
. Built-in motor drives.
Specifications
Features
Automation Control and IoT Integration
. Built-in Sensors：To detect temperature, gas (O2 / N2) concentration, AGV battery capacity, positions of materials (Loader/Unloader/Ovens), and the status of automatic doors (open/close).
. Built-in motor drives：Installing automatic switching motors and controllers for the oven, AGV (drive motors and stacking), and air flow control motors, each equipped with a networked PLC controller in both loader and oven. The connectivity between the loader and robotic arms is established through Wi-Fi.
Applications
Industry automation manufacturing for drying processes include semiconductor, IC, PCB, LED, and electronics manufacturing.
PC/PLC Controlled Oven Specification
| Specification | |
| Process Temperature | RT ~450℃ |
| Temperature uniformity | ± 1.5% |
| Cleanliness |
ISO14644-1 Class 5 @ 0.3 µm |
| Cooling Method | Air Cooling(N2/CDA)、Water Cooling |
| Compatible Equipment | EFEM 、Robotic arm |
| Oxygen Concentration | 20ppm |
| Operation Interface |
User-Friendly operation interface, complies with . CIM . Ethernet & SECS/GEM . PCB ECI |
| Options |
．Fast air-cooling system |
| Process |
. Curing for chips and substrates in PR/PI processes. Ideal for wafer-level and fan-out panel level packaging, |
