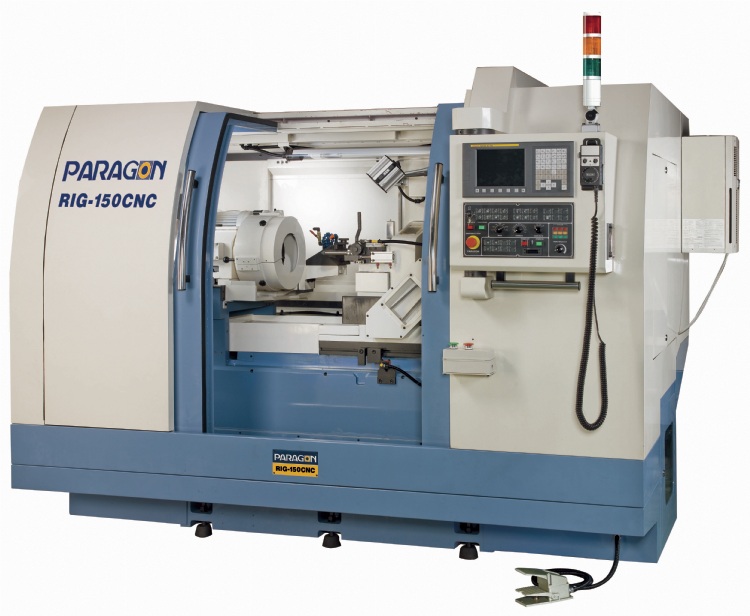

INTERNAL GRINDING MACHINE-CNC SERIES
Model: RIG-150CNC1(1AXIS),RIG-150CNC2(2AXIS)
Category: Machine Tools / Grinding Machines / CNC Internal Grinding Machines
Characteristics
Full Automatic Cycle:
a.Mount any object with an internal diameter ranging from 6mm to 150mm. Push the "table" start switch, the work will be automatically ground.
b.The grinding cycle: First : rough grinding, then: fine grinding, final: full automatic spark out.
Table Motion:
a.Driven by hydraulic system with infinitely variable speeds:
b.Table is of high stability and less vibration.
Main Spindle:
a.Workhead will swivel forward 15 degrees and backward 5 degrees.
b.Various work holding devices are available.
Transmission:
a.All sliding surfaces are automatically lubricated.
b.Table motion is transmitted by hydraulic cylinder, cross slide motion is transmitted by precision ball screws of diminished backlash.
High Precision:
a.The machine is designed with heatdissipating devices to keep the accuracy of the machine stable.
b.Extremely rugged construction enhances the precision of the machine.
