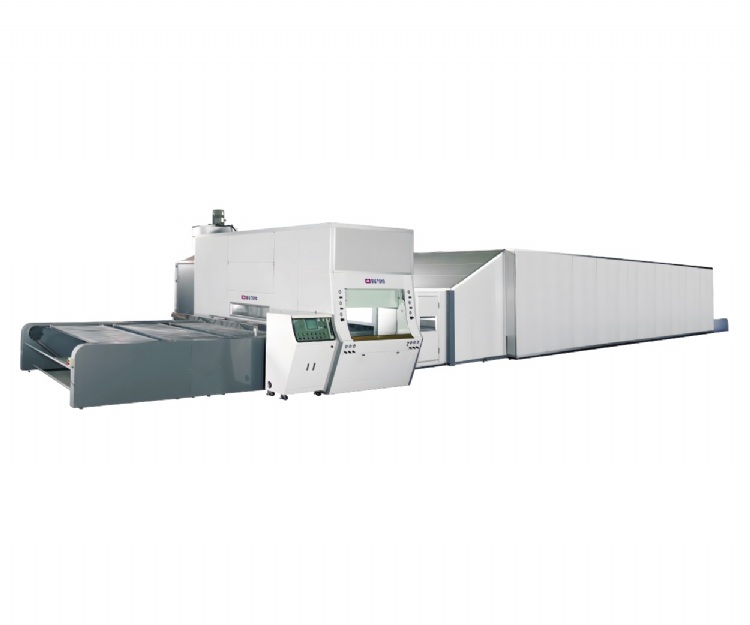

Automatic Painting Machine With Multi-Layer Oven
Model: HML
Category: Woodworking Machinery Industry / Finishing / Coating Machinery / Plane Coating Machine
Characteristics
BigToyo's Automatic Painting Machine With Multi-Layer Oven is designed for efficient coating of large workpieces. Features a chainless conveyor for easy loading/unloading, infrared drying for superior quality, and customizable options.
01
Convenient workpiece loading and unloading
The horizontal intermittent/continuous circulation conveyor provides convenient workpiece loading and unloading.
02
Chainless conveyor
The machine employs chainless conveyors featuring smooth and vibration-free running performance. No elongation or difficult maintenance problems that usually occur on a conventional chain conveyor.
03
Solid support for large workpieces
The fixed type of workpiece loader is ruggedly constructed, making it possible to coat large workpieces such as tabletops, cabinets, etc.
04
High quality coating
Specially designed infrared drying system. The drying chamber features dust-free air inlets. High coating quality is ensured.
05
Extremely smooth coating operation
Various speed coating heads, anti-explosion motors, and chain drive reciprocating mechanisms provide extremely smooth operation and numerical management.
06
Convenient adjustment of coating distance
The coating head is power elevated. When working on workpieces of various thicknesses, simply press a button to adjust the coating distance without adjusting the spray gun.
07
Coating range setting
The coating range can be set on the control panel to save paint and time.
Mist mist-washing air blower is available upon request.
08
Various coating system
Standard equipped with AA coating system and high-pressure paint pump. A bell electrostatic coating system can be supplied upon request.
