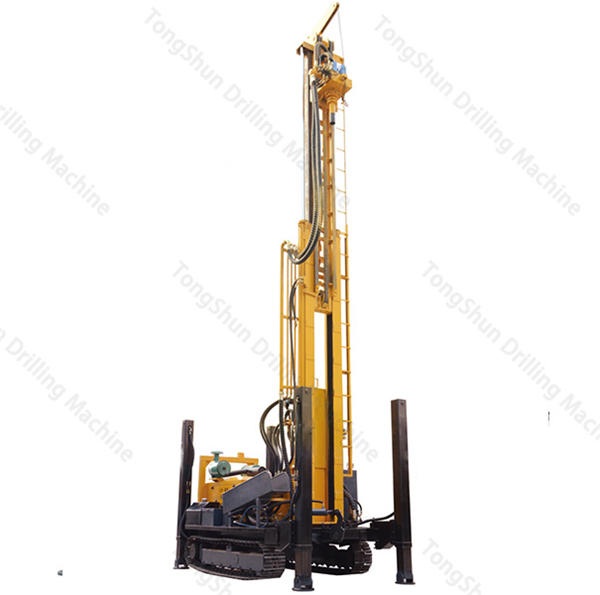

TSH-800 Crawler Mounted Water Well Drilling Rig
Model: TSH-800 Crawler Mounted Water Well Drilling Rig
Category: Machinery Parts and Components / Other Machinery / Other Machinery
Characteristics
TSH-800 Crawler Mounted Water Well Drilling Rig
Specifications
Versatile Drilling Capability: Drilling diameter range 140-400mm.
Enhanced Efficiency: Drilling depth 800m; Penetration efficiency 15-35m/h.
Adaptive Specifications: Drill pipe diameter 102mm, 108mm, 114mm, 117mm; Length 1.5m, 2.0m, 3.0m, 6.0m.
Water Well Drilling Rig Specifications
|
Equipped capacitor |
194kW |
|
Using air pressure |
1.7-3.5MPa |
|
Walking speed |
2.5km/h |
|
Dimension |
6300x2300x2650mm |
|
Climbing angles |
30Max. |
|
Swing torque |
9000-14000N.m |
|
Rig lifting force |
36T |
|
Air consumption |
17-42m³/min |
|
Fast feeding speed |
40m/min |
Customization Services
Drill Pipe Specifications: Tailor drill pipe diameter and length to match specific project needs.
Specialized Attachments: Custom attachments for unique drilling requirements.
Application Range
Groundwater Exploration and Extractio: Efficient drilling services for groundwater resource development
Construction Projects and Water Resources: Ideal for foundation engineering and water resource projects
For inquiries or additional information on the DTH Crawler-Mounted Water Well Drilling Rig or other products, please contact www.tontandrill.com
