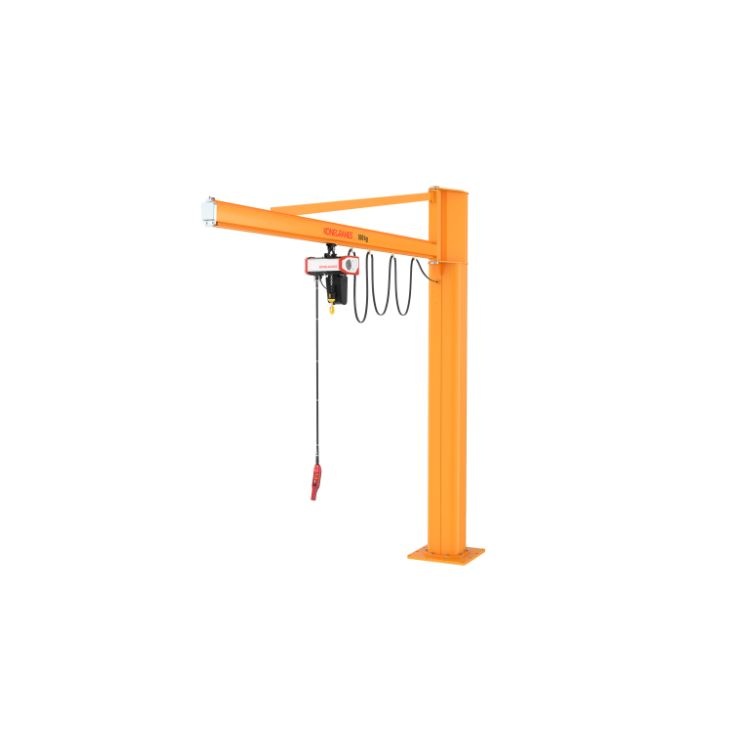

Konecranes jib cranes
Model: Konecranes jib cranes
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Conveyor Systems
Characteristics
The Konecranes wall-mounted and pillar jib cranes have common product features, including:
•Multiple designs for jib arms based on customer requirements
•Steady slewing with robust bearing and adjustable slewing resistance
•Manual slewing available for all types
•Slewing limiter allows rotation adjustment every two degrees
•Clamp fitting lets slewing limiter be added after installation
•Motorized slewing for jibs with I-beam arms
•Standard on/off safety switch with pillar jibs (optional for wall-mounted)
•Robust festooning and easy running with reliable cable carriers
•Pillar-mounted jibs allow cables from below, side, or above
•Selection of hoists: manual, electric chain, and pneumatic lifting devices
Specifications
Technical spec
* Applies to the jib crane steel structure only. Other components such as different hoist types have more narrow operating conditions.
** Higher-grade protective paint or other paint colours on request.
| Standard features | Pillar-mounted Jib crane | Wall-mounted Jib crane |
|---|---|---|
| Lifting capacity | 2,000 kg | 2,000 kg |
| Crane control | Radio / pendant | Radio / pendant |
| Maximum rotation | 300º | 270º |
| Hoist options | Manual hoist, electric chain hoist, air balancer | Manual hoist, electric chain hoist, air balancer |
| EC Machinery Directive | v | v |
| Design principles | DIN15018, Lifting class H1, Loading group B3 | DIN15018, Lifting class H1, Loading group B3 |
| Humidity | Maximum 80 % relative humidity | Maximum 80 % relative humidity |
| Ambient temperature* | -20 °C to +70 °C | -20 °C to +70 °C |
| Surface protection and paint** | Category C2-M corrosion protection according to DIN EN ISO 12944 | Category C2-M corrosion protection according to DIN EN ISO 12944 |
* Applies to the jib crane steel structure only. Other components such as different hoist types have more narrow operating conditions.
** Higher-grade protective paint or other paint colours on request.
