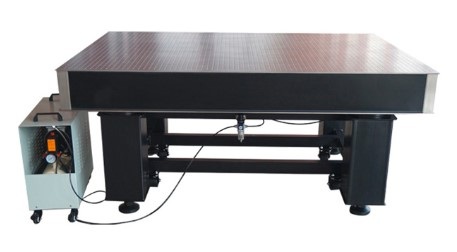

Self Leveling Precision Vibration Isolation Optical Table Nonmagnetic Optical Platform



Model: PT02

Category: Mold and Die Industry / Pressing Molds / Optical instruments



Online Inquiry





Characteristics



Product details:
Product Features:
■ Automatic balancing system: the air servo system is used to automatically adjust the level. Its outstanding feature is to feed back the response of the system to the micro vibration to the system, change the isolation characteristics, improve the isolation effect, and achieve the initial equilibrium state under the overload and biased experimental conditions.

■ Large optical vibration isolation platform, the outer frame is made of medium carbon steel plate with strong rigidity, small deformation and good welding performance.

■ The vibration isolation layer uses honeycomb structural materials with low natural frequency and strong vibration resistance performance, which can greatly control the vibration response.

■ The panel is made of high magnetic conductivity stainless steel plate, which is practical, beautiful and wear-resistant after fine grinding.

■ The vibration isolation support adopts two-layer diaphragm air bag for isolation, with high damping holes. The vibration isolation performance is good and stable, easy to adjust, automatic level, and automatic inflation. The use of silent air compressor air source has low noise, and is suitable for experimental sites with high vibration frequency requirements.

■ Silent air source, low noise (less than 65 dB)

■ Flatness:<0.05mm/m2

■ Surface roughness:<0.8 μ m

■ Natural frequency: vertical 1.2Hz~1.8Hz, horizontal 1.2Hz~1.8Hz

■ Amplitude:<1.2 μ m

■ Repeated positioning accuracy:+0.05mm

■ Air pressure: 0.2-0.6 (Mpa)
