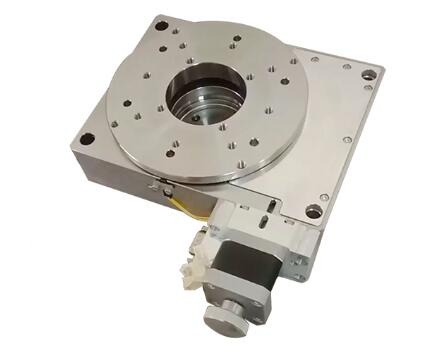

360 ° Rotary Vacuum Motorized Worm Gear Rotary Stage
Model: PX110-150
Category: Machinery Parts and Components / Machinery Parts and Components / Vacuum Pumps
Characteristics
Model Number
PX110-150
Structure Specifications
Angle Range
360°
Diameter of Platform
φ150mm
Transmission Ratio
70:1 or 140:1
Driving Mechanism
Worm gear and worm
Guide Form
Bearing
Stepper Motor 1.8°
42BYG
Material
aluminium alloy
Load Capacity
55kg
Weight
7.9kg
Specifications
|
Accuracy Specifications |
Design Resolution |
0.01°=36”, Non-MS Driver; 0.0005°=1.8”, 20MS Driver |
|
Rotational Velocity (Max) |
25°/sec |
|
|
Repeat Positioning Accuracy |
0.005°=18″ |
|
|
Absolute Positioning Accuracy |
0.01°=36″ |
|
|
Jumping Accuracy |
15μ |
|
|
Backlash |
0.005°=18″ |
|
|
Eccentricity |
20μ |
|
|
Lost Motion |
0.005°=18″ |
|
|
Parallelization |
100μ |
