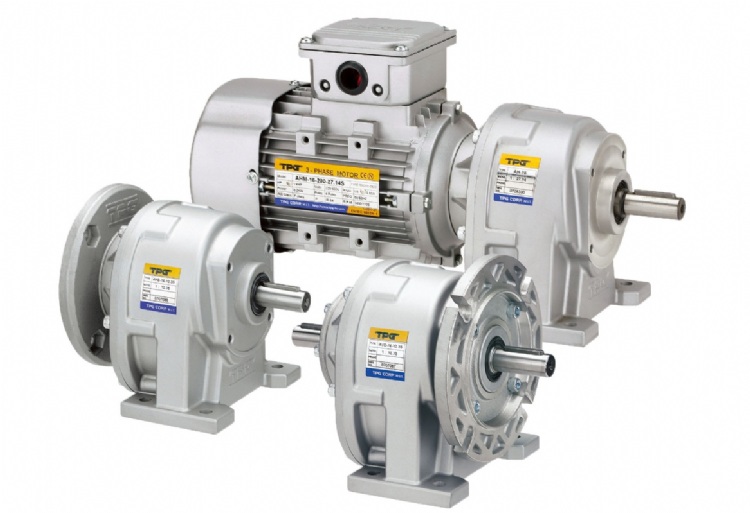

TPG EUROPEAN STYLE GEAR BOX
Model: AS TYPE
Category: Machinery Parts and Components / Machinery Parts and Components / Gear Motors
Characteristics
The TPG AS series helical in-line reducer features a European-style design aimed at handling higher overhung and thrust loads on the low-speed shaft. It ensures more balanced and stable gear torque, making it stronger, more durable, quieter, and more compact than traditional reducers.
Specifications
Output Shaft: Ø 16, Ø 19, Ø 25
Ratio: 1:5.02~192.1
Horse Power: 1/4~2HP
Input Flange: IEC 63B5, 71B5, 80B5, 90B5
□ SF>1, gear ratio ranging from 5.53 to 187.5, available in sizes 16/20/25, with flexible flange and foot mounting options, and single or double shaft configurations. Designed for cost-effective motor compatibility.
□ AS16/20 models feature die-cast aluminum ADC12 housing, providing reliability, lighter weight, and a stylish appearance. Interchangeable internal components between sizes help reduce spare part costs and inventory.
□ AS25 model has a cast steel FC25 housing for higher torque loads, reinforced bearings, and special heat treatment for precise hardness and durability. The tempering process ensures gear stability and longevity.
□ Suitable for applications such as circular weaving machines, agitators, food processing machines, milling machines, and textile machines.
