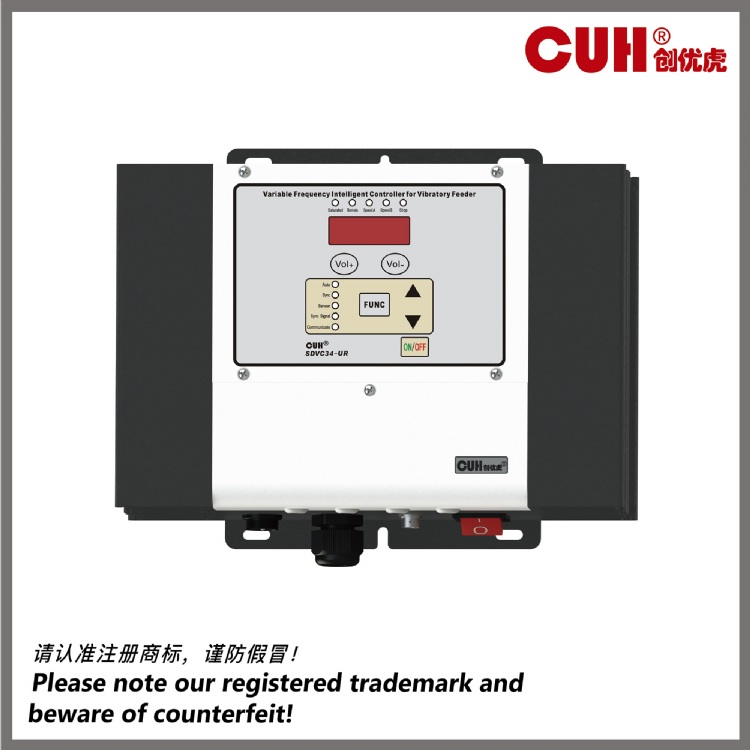

SDVC34-UR Variable Frequency Intelligent Controller for Vibratory Feeder



Model: SDVC34-UR

Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Parts and Accessories for Industrial Machinery



Online Inquiry





Characteristics



Automatic Constant Feed Speed Control: Automatic output voltage adjustment in real-time to ensure constant preset teed speed regardless of the workpieces

Automatic Frequency Adjustment: Automatic output frequency adjustment in real-time to make sure the load is always working at its resonant

Automatic Resonant Frequency Search: Search out and output the resonant frequency of the load. other related parameters are also set automatically

Rs485 Communication: All parameters of the controller can be adjusted via rs485.

Automatic Switch Sensor Type Recognition: The controller can recognize and adapt to both PNP and NPN-type switch sensors

Sync Output: Sync the waveform of the slave controller with that of the master controller to the same frequency and phase to avoid the beat effect.

Overvoltage Protection: If the input voltage is too high, the power supply of the controller will be shut down automatically to protect itself.

Digital Overheat Protection: If the internal temperature of the controller gets too high, the controller will stop its output to protect itself.

Overcurrent Protection: If the output current exceeds its rated value, the controller will stop its output to protect itself and the load.

Restorable Short Circuit Protection: If the controller's output is short-circuited, it will shut down its production to protect the load. But the fuse

inside will not be blown. So when there is no short circuit at the output side, the controller will work again after power on
