TEFLON(M-PTFE GBK、PTFE GBK、PFA GBK、PFA HP GBK) Lining Sheets/Laminated Sheet/Plain Sheets/Films
Model: SP-05
Category: Plastic and Rubber Industry / Other Machinery / Other Machinery
Characteristics

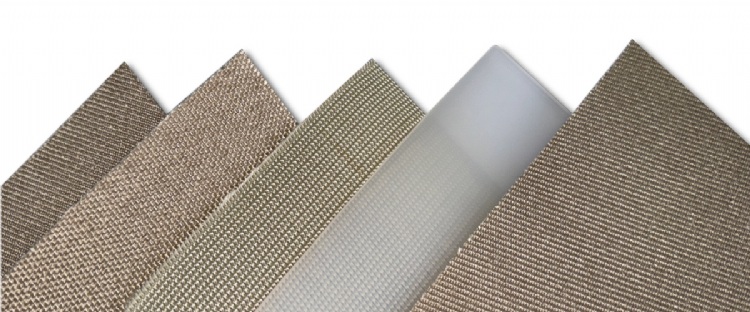

Fluoropolymer Lining Sheets (M-PTFE GBK, PTFE GBK, PFA GBK and High-Purity PFA GBK) are ideal for lining tanks and containers used for liquids and gases, as well as in chemical filtration systems and heat exchangers. These sheets help preserve the purity of chemicals and enhance the longevity of the lined tanks.
Additionally, we provide a range of weaving methods for glass fabric backings to suit your needs.
Specifications
Fluoropolymer Lining Sheets－GBK
Fluoropolymer Lining Sheets (M-PTFE GBK, PTFE GBK, PFA GBK and High-Purity PFA GBK) are ideal for lining tanks and containers used for liquids and gases, as well as in chemical filtration systems and heat exchangers. These sheets help preserve the purity of chemicals and enhance the longevity of the lined tanks.
Additionally, we provide a range of weaving methods for glass fabric backings to suit your needs.
| Material of Sheets | Thickness (mm) | Fabric Backing | Width (mm) |
| M-PTFE | 2.0 2.4 3.0 |
Plain Weave Fiberglass Fabric Twill Weave Fiberglass Fabric Carbon Fabric |
1,200 1,500 |
| PTFE | 2.0 2.4 3.0 |
Plain Weave Fiberglass Fabric Twill Weave Fiberglass Fabric Carbon Fabric |
1,200 1,500 |
| PTFE | 1.5 2.0 2.3 3.0 |
Plain Weave Fiberglass Fabric knit Weave Fiberglass Fabric Twill Weave Fiberglass Fabric Carbon Fabric |
1,200 |
| PFA HP (High-Purity PFA) |
1.5 2.0 2.3 3.0 |
Plain Weave Fiberglass Fabric knit Weave Fiberglass Fabric Twill Weave Fiberglass Fabric Carbon Fabric |
1,200 |
Fluoropolymer－Plain Sheets
Fluoropolymer Plain Sheets (PFA and High-Purity PFA) offer exceptional chemical resistance, low friction, a wide temperature range, and various other advantageous properties.
| Material of Plain Sheets | Thickness (mm) | Width (mm) |
| M-PTFE |
3.0 |
1,200 |
| PTFE | 2.4 3.0 |
1,200 |
| PFA | 1.5 2.0 2.3 3.0 |
1,200 |
| PFA HP (High-Purity PFA) |
1.5 2.0 2.3 3.0 |
1,200 |
Fluoropolymer－Films
Fluoropolymer Films (PFA and High-Purity PFA) are highly transparent, exhibit excellent insulation resistance and are flame retardant. They are suitable for applications in cables, circuit boards, diaphragms, and more. These films can be customized into finished cuts, thermoformed parts, punched components, and laminated with various materials as a hot melt adhesive.
| Material of Films | Thickness (mm) | Width (mm) |
| PFA | 1.5 2.0 2.3 3.0 |
1,200 |
| PFA HP (High-Purity PFA) |
1.5 2.0 2.3 3.0 |
1,200 |
