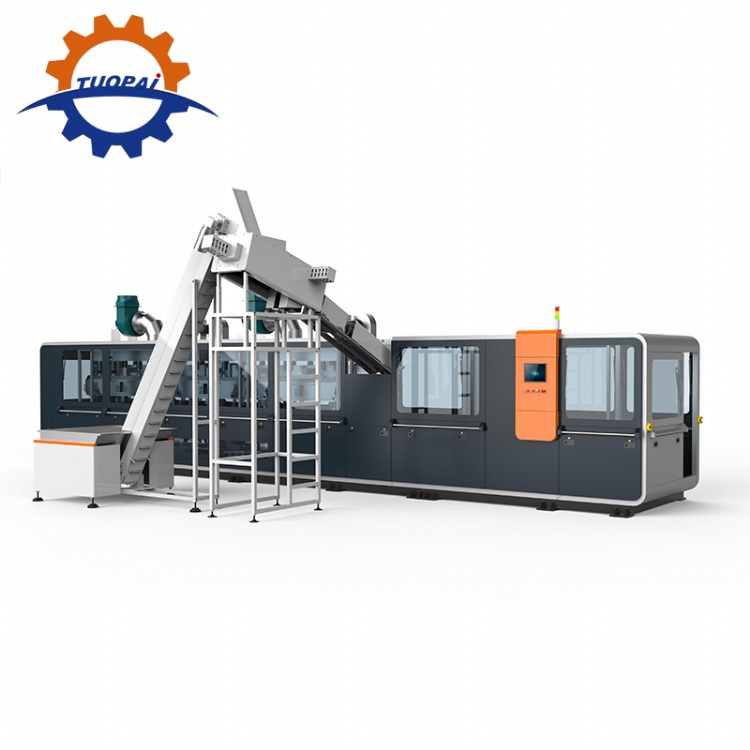

High Speed Blowing Machine special for PP IV Infusion Bottle
Model: 7
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Others
Characteristics
High Speed Blowing Machine special for PP IV Infusion Bottle
Specifications
SIV series fully automatic pp bottle blowing machine is a high performance linear line type bottle blowing machine which is newly developed according to IV solution industry requirement. It can meet different requirement of different size (100-1000ml), with capacity range from 2000 bottle/hour to 20000 bottle/hour. The pp bottle blowing machine has the feature of automatic, humanized and intelligent with stable performance and quick and simple maintenance. It has the characteristics of high production efficiency, more energy saving and low production cost, etc.
High Speed PP Bottle Blowing Machine Feature:
1. Compact integrated design of wash-fill-seal with smaller production area
2. Applicable to any round or flat IV solution bottles with different shapes
3. Voice alarm when fault, and machine halt
4. PLV control, all operation data can be set, changed and kept on file
5. CIP/SIP on line
6. Servo drive and stable during high-speed movement, the positioning is accurate, durable, and the maintenance cost is low.
7. The cam clamping fingers without plastic scrap and powder to ensure product quality.
8. High production capacity: range from 4000-25000 bottles per hour.
9. Closed integral chain structure, precise center distance, rings and other foreign objects cannot enter the chain, easy maintenance.
10. The sealing does not air leak, improve the blowing efficiency, shorten the bottle forming time.
PP Infusion Blowing Filling and Sealing Machine Advantage:
1. Controlled by PLC.
2. Frequency variable speeds.
3. Plastic Bottle Forming, Filling and Sealing 3 in 1
4. Meet GMP.
