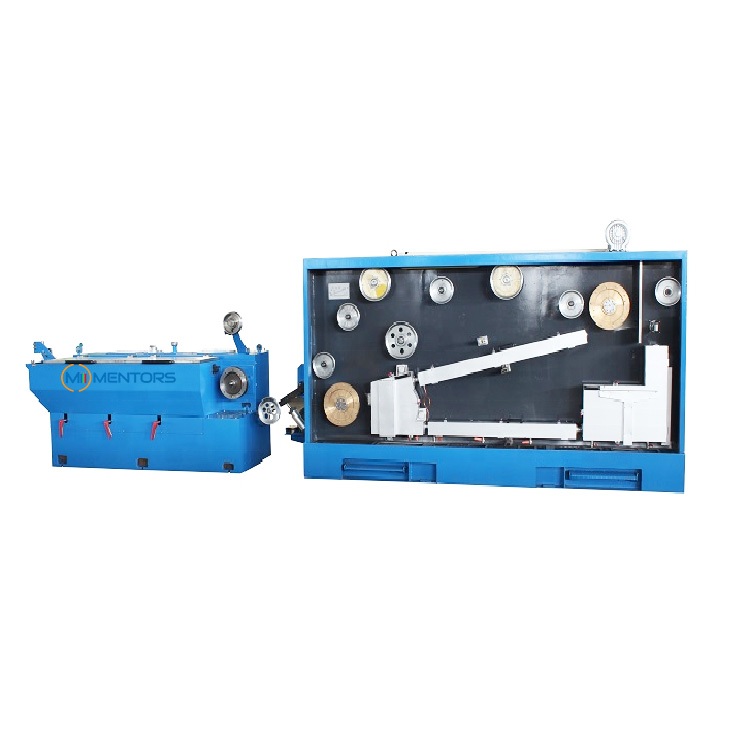

Model: SY-17DHT/B

This machine is used for drawing and annealing copper wire from 3.0 mm to 0.4-1.6 mm.

1.Main feature:

This machine is used for drawing and annealing copper wire from 3.0 mm to 0.4-1.6 mm.Outlet wire can be collected by single spool take up or coiler.

1) Max.Dies Qty: 17.

2) Outlet wire size: 0.40-1.60 mm.

3) Max speed:25-30 m/s.

4) Vertical annealing.

2.Parameters:

Item	Data
Machine type	SY-17DHT/B
Control system	PLC
Inverter control	Dual inverter control
Drawing dies No./max.	17
Inlet diameter	Ø 2.5- 3.5mm
Out diameter	Ø0.4- 1.6mm
Drawing line speed /max	2000m/min
Slip ratio of m/c	20%
Fix speed capstan slip ratio	15.5%
Frame	Ironed cast
Capstan	Carbon fibre plasma capstan
Main motor	55kw
Spooler motor	11kw
Fix speed capstan dia.	Ø 250mm
Dia.of annealing	Ø 250mm
Annealing voltage	DC 0-60V
Annealing current	DC 2000A
Protection type	Steam or nitrogen
Spool bobbin size	Ø 500mm or according to customers
Optional take-up machine	Coiler

3.Advantage:

3-1. For same finished size, compare to Rod Breakdown Machine, electricity and energy saving.

3-2. Ironed cast and Wear-resistant capstan can keep long life.

3-3. Fully immersed lubrication, lubrication tank body is separated with gear box without oil mixed.

3-4. Besides normal copper, also is a good choice for welding wire.

3-5. Horizontal annealing design is easily for operating.

3-6. Longer annealing section with tension ensure good and stable elongation.
