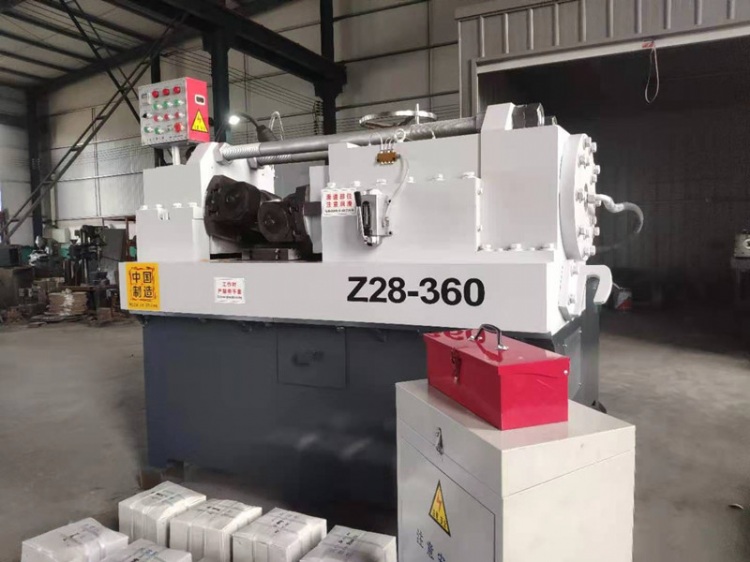

Z28-360 foundation bolts thread rolling machine thread screw making machine
Model: Z28-360
Category: Machine Tools / Thread Rolling Machines / Thread Rolling Machines
Characteristics
Z28-360 rebar screw thread rolling machine circular thread rolling machine 2 thread rolling machine Our thread rolling machine used for making thread on bolts, screws, fasteners, threaded rods. Can with antomatic feeding device. It can be processed radially or axially, and it can be processed with the corresponding rolling wheel to process ordinary bolts, special bolts and tie rods etc. We are the manufacturer, good price for you. We have professional sales staff to answer any questions you ask. Help you choose the most suitable models. We have professional technicians. Solve any difficult problems about the operation of the machine for whole day.
Specifications
Technical parameter of metal steel thread rolling machine:
Items Z28-360
Rolling thread range Diameter 100mm
Max thread pitch 10mm
Spindle angle ±10°
Max rolling pressure 450kn
Spindle RPM CVT
Roller size range Outside diameter 230mm
Hole 75/85mm
Max width 200mm
Rolling time 0.1-99.9s
Rest time 0.1-99.9ss
Spindle drive power 15kw
Hydraulic transmission power 11kw
Dimension 2150*1850*1550mm
Weight 3600kg
Any more questions of foundation bolt screw thread rolling machine, pls contact us freely.
