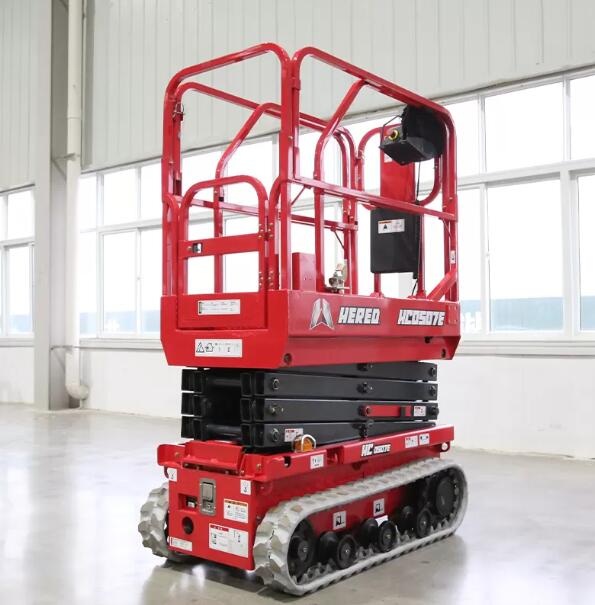

Crawler Scissor Lift HC0507E
Model: HC0507E
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Others
Characteristics
Crawler Scissor Lift HC0507E
Specifications
Crawler scissor lifts are lightweight and have rubber tracks for smooth, fast and safe passage through difficult road conditions. 21ft crawler scissor lifts run on standard AC power, have zero emissions and are environmentally friendly.
|
Models |
HC0507E |
|
Measurements |
|
|
Max. Working Height (In/out) |
6.5m / 0m |
|
A-Max. Platform Height (In/out) |
4.5m / 0m |
|
B-Platform Length |
1.34m |
|
C-Platform Width |
0.72m |
|
Extension Size |
0.60m |
|
D-Heights (Rails Up) |
2.07m |
|
Height (Rails Down) |
1.71m |
|
E-Overall Length (with Outriggers) |
1.48m |
|
F-Overall Width |
0.79m |
|
G-Ground Clearance |
70mm |
|
Performance |
|
|
Platform Capacity |
230Kg |
|
Extension Capacity |
113Kg |
|
Max. Occupancy (Indoor/Outdoor) |
1 / 0 |
|
Max. allowed wind speed |
0m/s |
|
Drive Speed (Stowed) |
4Km/h |
|
Turning Radius |
Rotate in Place |
|
Up/Down Time |
25/20s |
|
Gradeability |
25% |
|
Max. Slope |
1.5°/3° |
|
Drive |
Front |
|
Crawler (mm) |
150x72x43 |
|
Power |
|
|
Batteries (V/Ah) |
2x12/100 |
|
Charger |
100-240VAC/6.3A |
|
Weight |
|
|
Weight |
920Kg |
