1.5Ton Semi Electric Stacker
Model: 10
Category: Machine Tools / Others / Other Machinery
Characteristics

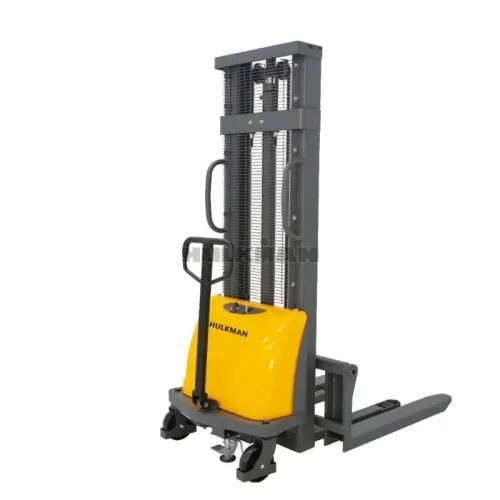

1.5Ton Semi Electric Stacker
Specifications
● With hydraulic leveler control lifting and lowering, speed is adjustable.
● An explosion-proof valve applied in the cylinder prevents injuries in case of hydraulic pump failure.
● Brand-new configuration: adopted 1.5kw hydraulic pump (manual descending with controllable speed)
● With large storage battery.
● Steering mechanism driven by chains requires small steering force to convenient operations.
● Foot brake is more prompt, convenient and labor saving.
● Optional forks: stationary forks, adjustable forks, forged forks.
● Adopted plate chains with high strength. Ensure safety and stability.
Specification Parameters
|
Model |
|
DB15M |
|
Rated Load |
Q（kg) |
1500 |
|
Load Center Distance |
c(m) |
400 |
|
Front Overhang |
x(mm) |
650 |
|
Tread |
Y(mm) |
1235 |
|
Axle Load, F/R, laden |
kg |
375/1540 |
|
Axle Load, F/R, unladen |
kg |
280/135 |
|
Wheel |
|
NYLON |
|
Wheel Dimension, Front |
mm |
φ180X50 |
|
Wheel Dimension, Rear |
mm |
φ80X78 |
|
Wheel Number, F/R |
|
2/2 |
|
Front Tread |
b10(mm) |
700 |
|
Rear Tread |
b11(mm) |
420 |
|
Mast Lowered Height |
h1(mm) |
2100/1850/2100/2250/2350 |
|
Lifting Height |
h3(mm) |
1600/2500/3000/3300/3500 |
|
Max. Mast Extended Height |
h4(mm) |
2100/3060/3560/3860/4060 |
|
Lowered Height |
h13(mm) |
90 |
|
Overall Length |
l(mm) |
1745 |
|
Length to Fork Face |
l2(mm) |
1070 |
|
Overall Width of Truck Body |
b1(mm) |
960 |
|
Fork Dimension |
s/e/l(mm) |
60X142X1070 |
|
Overall Width of Fork |
b5(mm) |
300-930 |
|
Wheelbase Ground Distance |
m2(mm) |
15 |
|
Aisle Width for Pallets 1000x1200(1200 Crossways) |
Ast(mm) |
2288 |
|
Aisle Width for Pallets 800x1200(1200 Crossways) |
Ast(mm) |
2267 |
|
Turning Radius |
Wa(mm) |
1425 |
|
Lifting Speed, laden/unladen |
m/s |
0.05/0.08 |
|
Descending Speed, laden/unladen |
m/s |
0.1/0.09 |
|
Traveling Brake |
|
Mechanical Brake |
|
Lifting Motor Power |
kw |
1.5 |
|
Battery Voltage/Rated Capacity |
V/Ah |
12/120 |
|
Battery Weight |
kg |
45 |
|
Battery Dimension l/w/h |
mm |
360x170x250 |
|
Service Weight(with Battery) |
kg |
335/395/415/425/435 |
We are a Electric Stacker supplier. If you are interested in our products, please contact us now!
