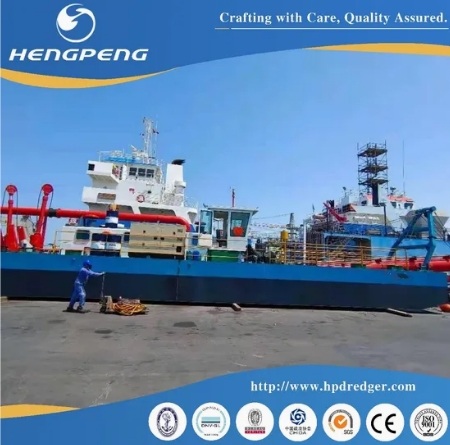

High-Performance 7000m³/H Heavy Duty Dredger with Advanced Siemens PLC
Model: HP-CSD6014
Category: Woodworking Machinery Industry / Used Machines / Used Machines
Characteristics
The Cutter Suction Dredger of steel construction, the non self-propelled, dismountable type, is able to berth and dredge at any waters both in the coastal area and inland rivers, with similar conditions to that in navigation area "A" or below the "A"-line specified in code for inland river steel engineering ship manufacture of P. R. China.
The dredger can be used to excavate and transport cohesive sediment below the class III specified in code for dredging engineering construction technique issued by Ministry of Water Resources(MWR) of P. R. China.
The hull consists of three pontoons, one main pontoon (engine room), two side pontoons. All parts are dimensioned to allow the dredger to be transported by road, rail or water. The dredger is equipped with a rapid connection-disconnection system for the pontoons, achieved using bolts at deck level, hull front and rear, and hooks at the bottom. Further features of the dredger are the dredger is powered by a Marine engine. The main engine is to drive the dredge pump and hydraulic pump. Hydraulic pump will in turn power other all equipments such as cutter, swing and ladder winches, and the spud rams etc.
The hull is of all welded, steel construction to give the dredger the necessary strength required for dredging operations. The side pontoons are connected to the main pontoon by means of bolts.
The hull steel plate used is CCSB (shipbuilding steel plate ).
Hull decomposition:
High-Performance 7000m³/H Heavy Duty Dredger with Advanced Siemens PLC
High-Performance 7000m³/H Heavy Duty Dredger with Advanced Siemens PLCHigh-Performance 7000m³/H Heavy Duty Dredger with Advanced Siemens PLC
Specifications
2. Specification
| Cutter Suction Dredger Specs HP-CSD 6014 | |||
| No. | Item | Parameter | Remark |
| 1 | Product Name | HP-CSD6014 | |
| 2 | Total Length | 39.0m | |
| 3 | Hull Length | 29.0m | |
| 4 | Hull Width | 9.2m | |
| 5 | Hull Depth | 2.4m | |
| 6 | Average Draft | 1.5m | |
| 7 | Main Engine |
1650kw (2211HP); 1 set |
|
| 8 | Auxiliary Engine | KW; Generating unit; 1 set | |
| 9 | Dredging Depth | 14~16m | |
| 10 |
Pump Water Flow Capacity |
50003/h |
|
| 11 |
Discharge Distance |
1500m |
|
| 12 | Cutterhead Dia | m | |
| 13 | Pump Discharge Dia | mm | SHIJIAZHUANG |
| 14 | Pump Suction Dia | mm | |
| 15 | Solid Capacity | 1000-1400m3/h | |
| 16 | Working Weight of machine | 300Ton | |
| 17 | Spud Pile | ||
| 18 | Hydraulic Winch | ||
| 19 | Navigation Ability | ||
| 20 | Operation System |
PLC Control System and 100% Full Hydraulic system |
|
| 21 | Spare Part | Diesel engine tools,oliseal,eletric,welder and so on | |
3. Features
1. One-man operation. The most advanced PLC control system.
2. New highly effective cutter/wheel drive system
3. Reliable hydraulic system.
4. Fresh water cooling system
5.Completely assembled and rigorously tested before delivery, ensuring reliability.
6. Very simple and fast assembly, afloat of onshore
7. Standard design, allowing short delivery times
8. Standard spare parts available from our stock
9. Designed as standard to qualify for Coastal Waters Certificate
10. Optional equipment available
4. Packaging & Shipping
* Smaller size dredger will be transported by container, the dredger is split, each part can be lifted into containers in the warehouse, after the all cargoes be pick uped to jobsite, and our engineers will go to job site to assembly, testing and training.
* Bigger size dredger will be transported by bulk cargo ship in sea, , after the all cargoes be pick uped to jobsite, and our engineers will go to job site to assembly, testing and training.
5. Our Advantages
(1) Lifetime Technical Support
(2) Sending engineers to assemble and test the machine within the period as agreed in the contract.
(3) Making an excellent filing of customers for long-term following-up service.
(4) 24-hour service response
(5) 12-month warranty with free repair services
(6) Imely professional service and solutions
(7) Efficient supply of maintenance spare parts
(8) Dredger Abroad,Dredger Working Case
(9) High Quality Engine, Gearbox and Dredging Pump:
(10) HengPeng High Quality Dredger Accessories:
(11) HengPeng Manufacture, Shipping, Assembly :
a. Shipping:
b. Assembly- Working Jobsite Installation:
(12) Heng Peng Discharge Pipelines:
