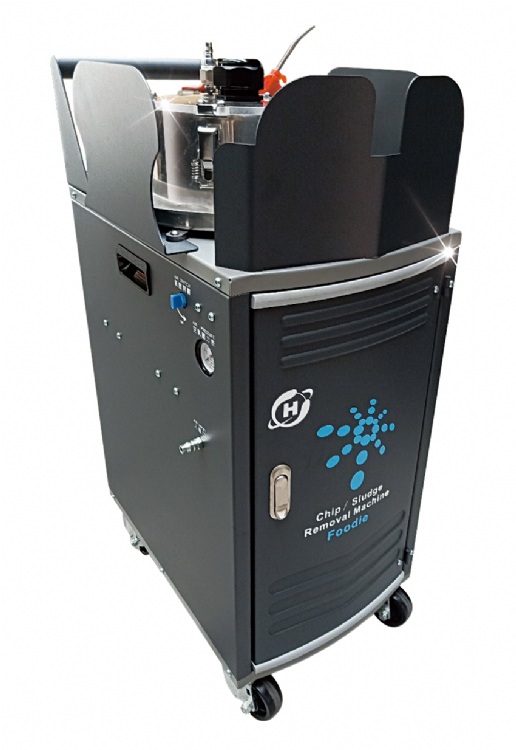

Chip/Sludge Removal Machine
Model: Foodie
Category: Mold and Die Industry / Peripheral Equipment Mold &Die / Peripheral automation
Characteristics
*Quick filtering
*Pneumatic plug-free
*Easy to move
*NO consumables
*NO downtime
CNC machining often results in remaining iron or aluminum chips in the water tank.
These metal residuals cause plugging and blockage in pumps and coolant deterioration
and will lead to tooling damage and decreased quality.
There is no need to shut down for quick processing and you can easily solve the problems of dusty sludge deposition.
It can be used for water-based and oil-based cutting fluids, metal cuttings, aluminum powders, and non-magnetic metal particles.
Surface floating debris, bottom fine chips, bottom sediment and other deposits can be quickly processed and recycled.
Effectively save time and cost for cleaning water tank.
Specifications
|
Machine Size(L*W*H) |
420*600*900mm |
|
Filter Capacity |
12L |
|
Net Weight |
56kg |
|
Max. Pump Capacity |
90 - 180 Lit. /Minute (47.49 Gallon per min) tested by water |
|
Air Pressure |
0.5 Bar - 8.3 Bar (7.25 Psi - 120 Psi) |
|
Filter |
380 ㎛ / 190 ㎛ / 830 ㎛ |
|
Filter Material |
304 Stainless Steel |
