PTFE molded sheet
Model: DL-005
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Parts for Plastic Processing Machinery
Characteristics

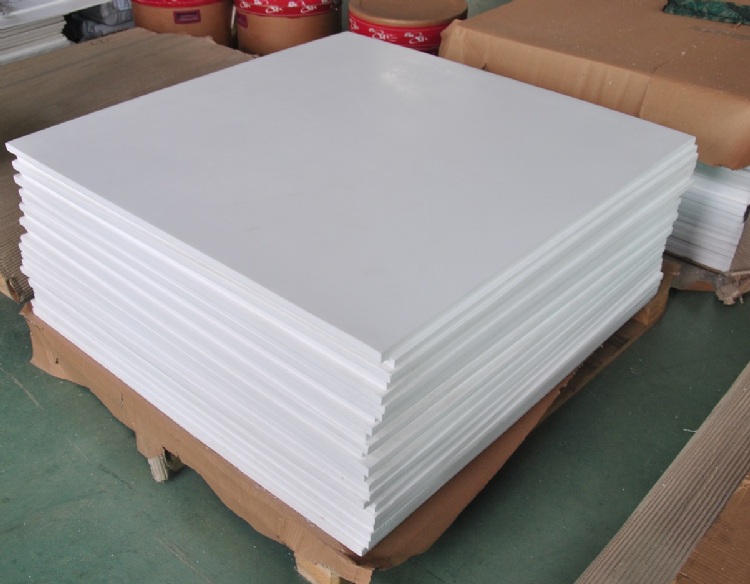

PTFE Molded Sheet
1. Characteristics:
PTFE molded sheet is manufactured by molding with PTFE granular resin, and then sintering and cooling.
PTFE is the most chemical resistance of all known plastics.
2. Main Features:
1) Heat resistance property---It is able to wok stably between -180°C to +260°C.
2) Excellent non-sticky property---It easier to remove those like resin, dopes, oil and other sticky things.
3) Good mechanical property with no distortion and low friction coefficient.
4) Excellent insulation property.
5) Materials like carbon, graphite and glass fiber can be filled.
6) Corrosion resistance.
3. Application:
1) PTFE molded sheet are used in reaction kettle, storage tank, valve, container, liner and gasket which work under all kinds of corrosive dielectric.
2) It also can be used as liner of anticorrosive pipes. oilless lubricator and adhesive material for sliding orbit of machines and dielectric at any frenquencies.
3) Also can be used within -180~+260 centigrade under the condition for no load.
4) Used in wrapping the cables under high voltage and high temperature.
5) Being used in sealing the electronic parts.
4. Technical data:
Project
Unit
Standard
Tensile strength
Mpa
≥20
Utimate elongation
%
≥200
Apparent density
g/cm3
2.1~2.3
Dialectic strength
Kv/mm
10
PTFE Plastic Sheet - High-Performance Polymer Sheets for Your Needs
PTFE Plastic Sheet is a type of plastic material that is made from polytetrafluoroethylene (PTFE), which is commonly known as Teflon. PTFE Plastic Sheets are widely used in a variety of industries and applications due to their excellent chemical resistance, low coefficient of friction, and high temperature tolerance.
PTFE Plastic Sheets are known for their outstanding corrosion resistance, which makes them ideal for use in harsh chemical environments. They are also highly resistant to water, acids, and other corrosive substances, making them suitable for use in a wide range of industrial applications.
In addition to their chemical resistance, PTFE Plastic Sheets are also known for their low friction coefficient, which makes them ideal for use in applications where sliding or rotating motion is required. This property also makes them an excellent choice for use as bearing or wear components.
Finally, PTFE Plastic Sheets are also known for their high temperature tolerance, which makes them suitable for use in applications where high temperatures are present. They can withstand temperatures up to 260°C (500°F) without degrading or losing their mechanical properties, making them ideal for use in high-temperature applications.
Overall, PTFE Plastic Sheets are a versatile and high-performance material that offers outstanding durability, reliability, and performance in a wide range of applications.
Looking for high-quality PTFE Plastic Sheets that offer excellent performance and durability? Look no further than Zhejiang Delong Teflon and Plastic Technology Co.,Ltd. Our PTFE Plastic Sheets are made from the finest quality materials, ensuring outstanding corrosion resistance and anti-aging endurance. If you want to know more details, please contact us by email.
