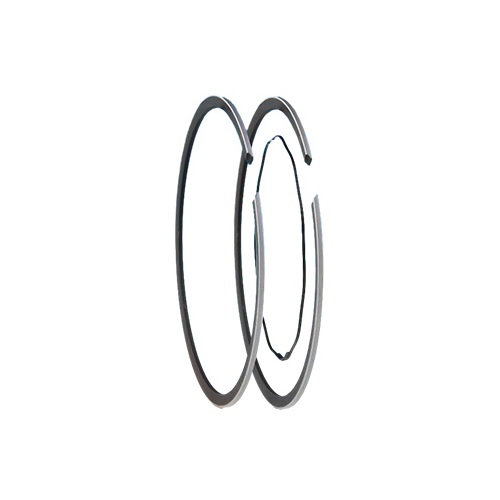

Air compressor piston ring
Model: Air compressor piston ring
Category: Machinery Parts and Components / Machinery Parts and Components / Bolts, Screws, Nuts
Characteristics
Air compressor piston ring
Specifications
Dongya purchases a series of steel ring materials from well-known international companies, which can meet the design requirements of various structures and surface treatment piston ring. At the same time, in accordance with the ISO-6621-3:2000 standard, according to customer needs and engine performance, we independently develop various cast iron ring materials.
|
PRODUCT CODE |
CYLINDER DIAMETER(MM) |
RING HEIGHT (MM) |
||
|
1ST |
2ND |
OIL |
||
|
04181 |
41.00 |
3.00 |
3.00 |
3.00 |
|
04281 |
42.00 |
2.00 |
2.00 |
2.50 |
|
04681 |
46.00 |
2.50 |
2.50 |
4.00 |
|
04781 |
47.00 |
1.50 |
1.50 |
3.00 |
|
05081 |
50.00 |
2.00 |
2.00 |
3.00 |
|
05086 |
50.00 |
2.50 |
2.50 |
4.00 |
|
05087 |
50.80 |
2.40 |
2.40 |
4.76 |
|
05281 |
52.00 |
3.00 |
3.00 |
3.00 |
|
05581 |
55.00 |
2.00 |
2.00 |
3.00 |
An air compressor piston ring is a crucial component in a reciprocating air compressor. It's a circular ring made of durable material, often metal or synthetic material, designed to create a seal between the piston and the cylinder wall. This seal is essential for maintaining compression within the cylinder during the compression stroke of the piston.
