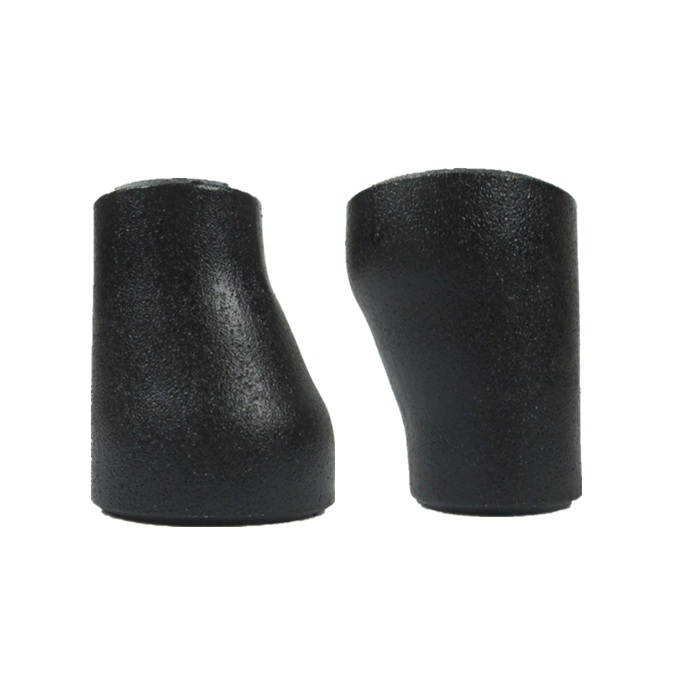

Buttweld Reducers are one of the many types of fittings that can be used to control the flow within a piping system. In a piping system, there are two major types of reducers: concentric reducers and eccentric reducers.

What is a Concentric Reducer?

A buttweld concentric reducer is a type of pipe fitting designed to connect pipes of differing diameters in a straight line.
It features a symmetrical design where the center axis of the inlet and outlet pipes align, resulting in a smooth transition between the two pipe sizes.This is an important feature that distinguishes it from an eccentric reducer.

Concentric Reducer Design and Construction

Concentric reducers typically have a conical shape, with one end having a larger diameter than the other. The tapering transition allows for a gradual reduction in pipe diameter, minimizing turbulence and pressure losses within the piping system. These reducers are commonly manufactured using materials such as carbon steel, stainless steel, and various alloys, ensuring durability and corrosion resistance.

Concentric Reducer Applications:

Concentric reducers find widespread applications across various industries, including:
1. Chemical Processing: Used in chemical plants to connect pipelines carrying different chemicals or fluids.
2. Oil and Gas: Employed in pipelines for crude oil, natural gas, and refined petroleum products.
3. Water Treatment: Utilized in water distribution systems to transition between pipes of different sizes.
4. HVAC Systems: Integrated into heating, ventilation, and air conditioning systems for ductwork modifications.

Concentric vs Eccentric Reducer: Which One to Choose?

When deciding between eccentric vs concentric reducers, the primary consideration is the orientation of the pipeline. Concentric fittings are best suited for vertical piping systems, where alignment and smooth, uninterrupted flow are essential. In horizontal piping systems, eccentric fittings are more appropriate because they help prevent gas accumulation (flat side up for liquids) or liquid entrapment (flat side down for vapors).

Eccentric vs concentric reducer decisions also depend on the fluid characteristics. For systems transporting viscous fluids, oil, or sludge, eccentric reducers offer better flow management and prevent sediment buildup. For simpler applications, where maintaining constant flow and minimal turbulence is crucial, a concentric fitting is the ideal choice.
