Specifications

DGS-FM-5A model filling machine including air-driven gas filling pump, precision pressure gauge, pressure reducing valve, high pressure electromagnetic valve, electric control part, and electronic scale, vacuum pump, etc.

Product Description

MOQ: 1 Set

Brand Name: SUNCENTER

Certificate: ISO/CE/SGS

Warranty: 13 Months

Packaging: by Plywood case

Shipping Port: Shenzhen/Hongkong

Payment: T/T, Western Union, Credit card.

Transaction method: EXW, FOB, DDP, CIF, CFR

Place of Origin: Guangdong Province, China (Mainland)

Delivery Time: Within 10-15 working days after received deposit.

FM200/ NOVEC1230 automatic filling machine

1. Machine Composition

DGS-FM-5A model filling machine including air-driven gas filling pump, precision pressure gauge, pressure reducing valve, high pressure electromagnetic valve, electric control part, and electronic scale, vacuum pump, etc.

2. Machine characteristics

DGS-FM-5A model filling machine using the compressed air as power source, Through the Suncenter air driven gas booster and filling pump, driving the FM200/NOVEC filling and conveying, when the transmission weight reaches a certain value, the sensor signal is transferred to the gas electromagnetic valve, the driven air will stop automaticlly, and pump stops working.

Then Connecting the nitrogen gas source, open the high-pressure nitrogen gas valve and start the injection of nitrogen; when precision pressure gauge shows the needed nitrogen pressure then close the nitrogen valve; filling finished; It has the characteristics of small volume, light weight, simple operation, reliable performance. Especially suitable for the filling of FM-200/NOVEC in fire fighting industry.

3. Main parameters:

The driving source: compressed air (by air compressor, need 3-8 bar air pressure)

Medium: FM200/ NOVEC/Nitrogen

Boost ratio: 5:1

Output pressure: 4.2 Mpa/5.3Mpa

Driven air inlet port: fast insert 12 per cent

Nitrogen/FM200 inlet port: ZG3/8 internal thread

High pressure gas outlet port: ZG3/8 internal thread

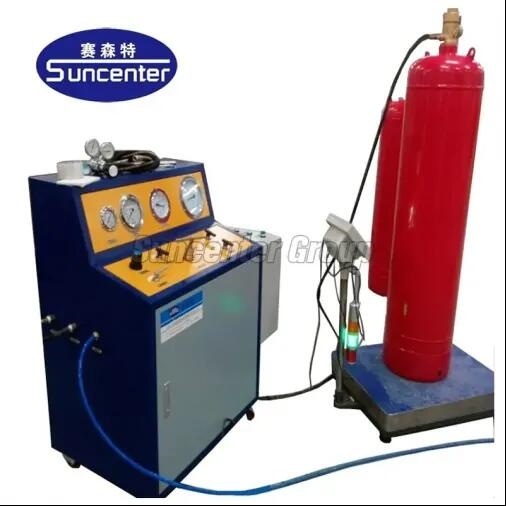

Suncenter fire extinguisher filling machine working picture
