[瀚笙科技] ACP Snow Jet Green Clean Technology (CPO, AI, Microlens, FAU, Silicon Photonics, Probe Card)
Model: ACP Jetworker ACP Jetstation ACP JetCell
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics
[MOS Technology] ACP LCO2 Snow Jet Dry Cleaning
Advantages of technology:
The acp CO2-Snow-Jet Cleaning technology is suitable for removing organic films and particles from surfaces. With the aid of a supersonic jacketed jet an increased cleaning performance can be achieved while at the same time reducing the CO2- consumption. Automated applications can be designed to be process capable through liquid-CO2 supply. The acp CO2-Snow-Jet cleaning technology is available from a small mobile and stationary cleaning unit for a flexible cleaning in productions or for simple process evaluation up to a fully automated production platform.
► Environmentally friendly對環境友善
► CO2 UtilizationCO2再利用
► Dry cleaning process乾式製程無水清潔
► Effective Residue-free cleaning零殘留無藥劑清潔
► Non-abrasive柔性清潔，不傷表面，無磨損
► Industry 4.0 工業4.0自動化整合易
► Reduction in costs 降低成本
► Improves product quality and process efficiency 有效的改善產品品質及製程
MOS Technology, Zack Huang
zack@mostech.com.tw, +886936350093
Specifications
Product Introduction
Principle:
Quattro cleaning
- Detachment due to the transmitted forces of pressure and shearing
- Embrittlement of the contamination through rapid cooling, material shrinking
- Rinsing (increase in volume of approx. 600x during sublimation)
- Dissolving of adsorption bonds (solvent effect)
Products
Jetworker
The JetWorker is an extremely compact portable cleaning system.
It is particularly suitable for manually cleaning low to average numbers of parts and products, either as a portable solution or as a flexible tabletop solution.

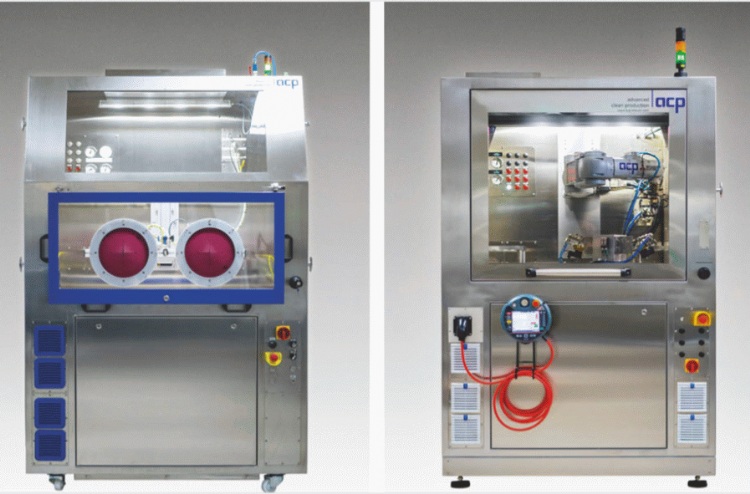

Jetstation:
The perfect design with the stainless steel jet booth can make the operating space hermetic and isolate the additional contaminant.
The JetStation can be used as a soundproof sitting or standing workplace. The complete snow-jet process technology is integrated into the cleaning room-standard workspace.
Customized systems:
The CO2 snow jet cleaning technology can be integrated into a wide range of manufacturing and cleaning systems. Depending on customer requirements, fully- or partially-automated plants are developed that can be operated either as stand-alone solutions or be integrated into production line.
The systems can also be designed for use in cleanrooms with an integrated mini-environment and specially adapted, patented extraction unit.
