Specifications

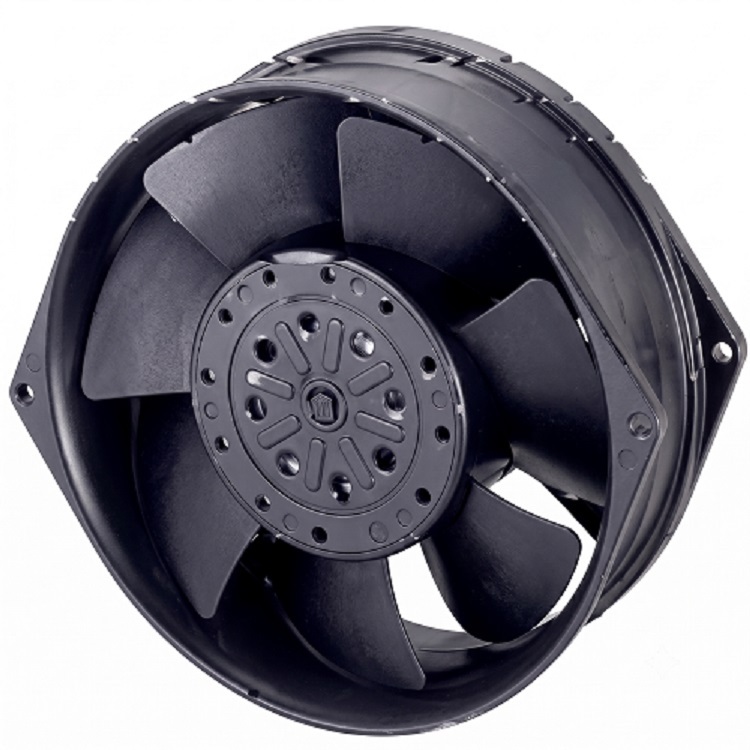

[ Solving Thermal Challenges in Automation & Outdoor Cabinets ] To withstand dust and moisture, automated control cabinets and outdoor Energy Storage Systems (ESS) often utilize thick, high-density dust filters. This creates immense "system impedance," drastically reducing the airflow of standard fans and leading to equipment overheating. Bi-Sonic's 5E-230B AC Axial Fan is specifically engineered for these harsh environments, delivering a massive 15.5 mmH2O static pressure and 240 CFM airflow to effortlessly overcome filter resistance and rapidly exhaust waste heat from inverters and control modules.

[ 5 Major Global Certifications for Seamless Export ] This product has passed 1500V high-voltage isolation tests and holds complete safety certifications from UL, CSA, TUV, CE, and CQC. Whether your equipment is deployed domestically or exported to North American, European, or Asian markets, you are guaranteed to pass component safety inspections with ease, ensuring seamless integration into the global supply chain.

[ 40 Years of Thermal Expertise | Integrated Manufacturing ] With R&D headquarters in Taiwan offering real-time thermal evaluation and an ISO 9001:2015 certified manufacturing facility in Guangzhou, Bi-Sonic guarantees precision lead times, technical support, and extreme cost-effectiveness. We welcome inquiries from automation equipment and heavy electrical/ESS manufacturers. Physical samples are available for installation and life-cycle testing.

4. Specifications

• Rated Voltage: 230 VAC (50/60Hz)

• Input Power: 46 / 44 W

• Max Airflow: 200 / 240 CFM

• Max Static Pressure: 14.5 / 15.5 mmH2O

• Speed: 2750 / 3100 RPM

• IP Rating: IP55 (Dustproof & Waterproof)

• Bearing System: Dual Ball Bearing

• Dielectric Strength: 1500V AC (1 minute)

• Frame Material: Aluminum Alloy Die-Casting

• Impeller Material: Metal
