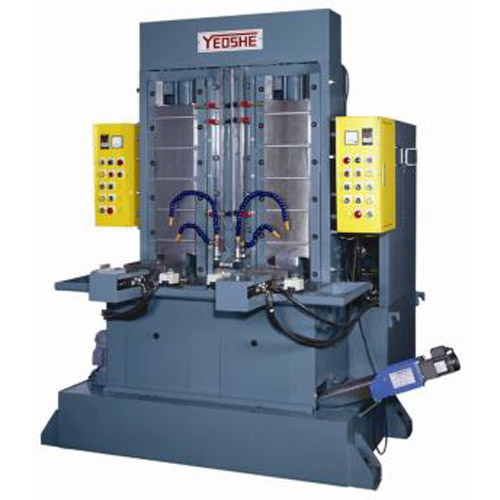

Hydraulic Broaching Machine
Model: YS-600-2
Category: Machine Tools / Broaching / Slotting Machines / Broaching Machines, Vertical
Characteristics
Features：
1.Suitable for external and internal broaching. 2.ou can produce all kind of size that you need 3.in one time to save the time of transport.
4.Quick speed, high processing precision, and precise positioning.
5.Easy to operate and control.
6.Pneumatic self cleaning metal chip function.
7.Pressure and speed can be adjusted freely by optional requirement of the work pieces.
8.Machine specification also can be designed by optional requirement of the users.
9.You can operate byyourself, the eficiency is double to Hydraulic Broaching Machine, time-saving and labor-saving.
Specifications
Spanner Size(mm) 6-23
Stroke(mm) 600
Oil cylinder lifting speed(mm/sec) 180
Oil cylinder descending speed(mm/sec)0-150
Operating pressure(kg/cm²) 30~140 KG
Voltage AC220/380
Motor(HP) 5HP x 2Vertical
Operating Type Operating Method
Working Oil capacity 800
Body weight 4500
Size(mm) 2150*2120*2180
Mold Size(mm) 430(L)*350(W)
Work Table(mm) 1600(L)*550(W)
