Specifications

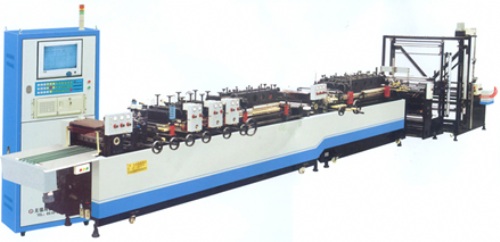

GSD-600S, High-SpeedP, Three-Side-Seal with Standing Pouch Automatic Bag Making Machine

Pouch Making Sizes and Shapes

Three-side-seal pouch making
Bottom seal(4-line bottom seal case illustrated)
L1(Pouch length)：strike 300mm max
W1(Pouch width)：75mm到600mm
S1(Seal width)：60mm max
S2(Seal width)：25mm max

Bottom seal(4-line side seal case illustrated)
W2 (Pouch width)： strike 300mm max
L2 (Pouch length)：75mm到600mm
S3(Seal width)：25mm max
S4(Seal width)：30mm max

Standing pouch making (2-line pouch making)
W (Pouch width)：60mm to 250mm
　　　　　　　　　　1-strike 500mm max
L (Pouch length)：120mm to 270mm((2-line pouch making)
　　　　　　　　　　240mm to 540mm((1-line pouch making)
G（Bottom gusset depth）：20mm to 70mm
A（Bottom punch diameter [standard]）：φ16mm
