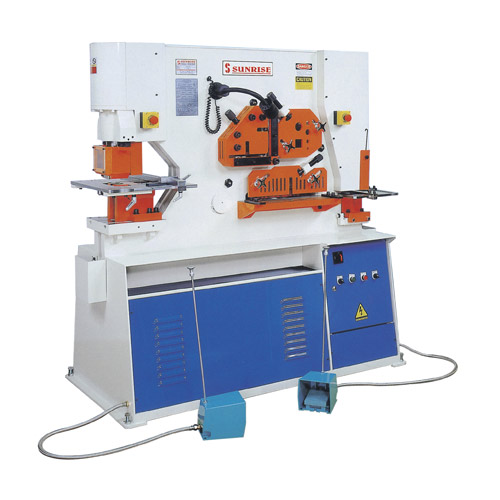

Double Cylinder Ironworkers
Model: IW-60S,IW-60SD,IW-80S,IW-80SD,IW-100S
Category: Machine Tools / Metal Forming Machine Tools / Hydraulic Punching Presses
Characteristics
The double cylinder "S/SD" series, ranging from 60 tons to 165 tons of punching force, are in the Sunrise tradition of well engineered ironworkers built for high power, quality, and reliability. These ironworkers have two control foot paddles, and separate operations can be safely performed simultaneously. The low pressure setting for tool change provides maximum operation safety. The long punching cylinder stroke and deep throat enable mounting a wide range of special equipment. A 2-hole overhang die holder and a 2-piece gauging table are provided as standard equipment.
Specifications
MODEL: IW-80S
Punching Pressure: 80 Ton
Punch Capacity: ø26 x 22
(Diameter x Thickness): ø50 x 12
Throat Depth S: 310
Throat Depth SD: 510
Channel Flange Punch (Height):180
Max. Stroke Length : 100
Cycles / Min. (20mm stroke): 29
Working Height Up to Die: 1050
Electric Power: 10 HP
Net Weight (Apr.) S: 2180 kg
Net Weight (Apr.) SD: 2650 kg
Gross Weight (Apr.) S: 2360 kg
Gross Weight (Apr.) SD: 2880 kg
Machine Dimension (Apr.) S: 1840x820x1730
Machine Dimension (Apr.) SD: 2220x820x1730
Packing Dimension (Apr.) S: 2110x980x2010
Packing Dimension (Apr.) SD: 2490x980x1770
