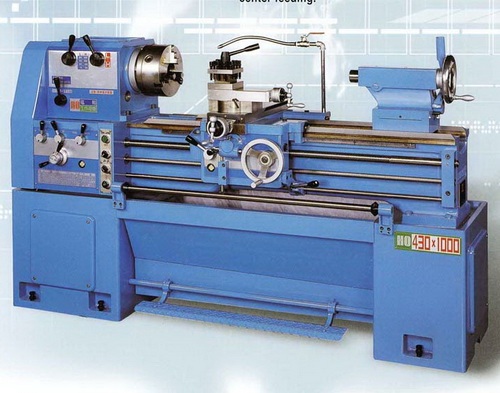

HO-430 High Speed Precision Lathe
Model: HO-430
Category: Machine Tools / Lathes / High Speed Precision Lathes
Characteristics
•Machine body is made of high rigidity cast iron (FC25) so that the slide ways will be durable and won't be transformed forever.
•Spindle and gears in spindle housing are all made of chrome molybdenum steel which are hardened and grounded. Spindle is supported by high precision roller bearings put three points on the spindle. So, its rigidity is higher.
•Gears of gear box are dipped with oil in a closed box making it easier and more convenient to change speeds. Can make threads such as imperial, metric, diametral, pitch and module.
•Apron is oil dipped, too. Cross and long itudinal feeding are all equipped with a safety device.
•Tailstock with bigger body can produce heavy duty cutting. Locks firmly to prevent from slipping wher center feeding.
Specifications
Capacity :
Height of centers 215
Swing over bed 434
Swing over cross slide 270
Width between gap to faceplate 220
Swing over gap 650
Width of bed 300
Spindle：
Hole through spindle & spindle nose 54 (A1 - 6)
Spindle speeds (rpam) 70 - 1800
Center MT4
Feeds & Threads：
Range of longitudinal/Cross feeds (32 step) 0.06 - 0.83
Imperial threads (32 step) 4 - 56 TPI
Metric threads (32 step) 0.4 - 7 P
Carriage：
Travel of cross slide 270
Travel of top slide 130
Tailstock：
Travel of tailstock sleeve 165
Center of tailstock MT4
Motors：
Spindle drive motor 3HP
Machine dimensions and weight：
KGSpace required (LxWxH) 1750m x 750m x 1200m
Packing dimensions (LxWxH) 1860m x 810m x 1520m
Net weight (approximate) 1000kg
