AC single phase general series filters

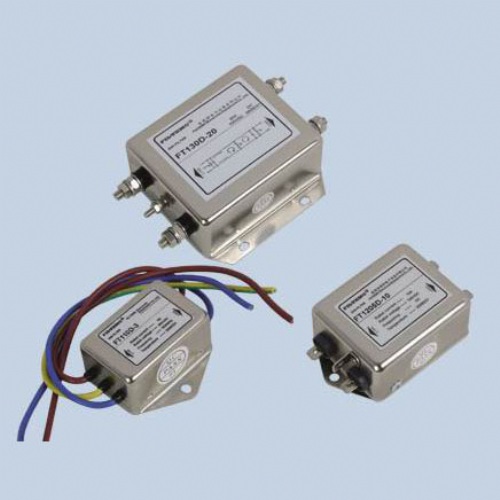

Model: AC single phase general series filters
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics
AC single phase general series filters
1.Feaures & Applications:
Suppress the eletromagnetic interference on line to line and line to ground effectively.
High performance/price ratio
Suitable for the switching power supply,UPS,automat,embroidery machine.oscillograph,industrial computer,controller,etc.
Rated current:0.5A-200A.
2.Technical data:
Rated voltage:110/250VAC
Test voltage:1760VDC(line to line) and 2000VAC(line to ground).
Climatic category:25/085/21.
Operating frenquency:50/60Hz.
Insulation resistance:＞200MΩ@500VDC.
3.Tabulates
FT110-1:1A(Ratedcurrent),
＜0.5MA(Leakagecurrent250VAC/50Hz),Fig.1(Dimension),
Fig.1(Electrical schematics),Wire(Termination),0.065Kg(Weight).
FT110-3:3A(Ratedcurrent),
＜0.5MA(Leakagecurrent250VAC/50Hz),Fig.1(Dimension),
Fig.1(Electrical schematics),Wire(Termination),0.065Kg(Weight).
FT110-6:6A(Ratedcurrent),
＜0.5MA(Leakagecurrent250VAC/50Hz),Fig.1(Dimension),
Fig.1(Electrical schematics),Wire(Termination),0.065Kg(Weight).
FT110-10:10A(Ratedcurrent),
＜0.5MA(Leakagecurrent250VAC/50Hz),Fig.2(Dimension),
Fig.1(Electrical schematics),Solder lug(Termination),0.075Kg(Weight).
FT111-6:6A(Ratedcurrent), ＜1.0MA(Leakagecurrent250VAC/50Hz),Fig.3/Fig.4
(Dimension),Fig.2(Electrical schematics),
Solder lug and M4 Stud(Termination),0.14Kg(Weight).
FT111-10:10A(Ratedcurrent), ＜1.0MA(Leakagecurrent250VAC/50Hz),Fig.3/Fig.4
(Dimension),Fig.2(Electrical schematics),
Solder lug and M4 Stud(Termination),0.17Kg(Weight).
FT111-20:20A(Ratedcurrent), ＜1.0MA(Leakagecurrent250VAC/50Hz),Fig.3/Fig.4
(Dimension),Fig.2(Electrical schematics),
Solder lug and M4 Stud(Termination),0.17Kg(Weight).
FT111-30:30A(Ratedcurrent), ＜1.0MA(Leakagecurrent250VAC/50Hz),Fig.5
(Dimension),Fig.2(Electrical schematics),
M6 Stud(Termination),0.22Kg(Weight).
FT111-50:50A(Ratedcurrent), ＜2.0MA(Leakagecurrent250VAC/50Hz),Fig.6
(Dimension),Fig.2(Electrical schematics),
M6 Stud(Termination),0.6Kg(Weight).
FT111-100:100A(Ratedcurrent), ＜2.0MA(Leakagecurrent250VAC/50Hz),Fig.7
(Dimension),Fig.2(Electrical schematics),
M8 Stud(Termination),1.38Kg(Weight).
FT111-150:150A(Ratedcurrent), ＜2.0MA(Leakagecurrent250VAC/50Hz),Fig.8
(Dimension),Fig.2(Electrical schematics),
M10 Stud(Termination),1.9Kg(Weight).
FT111-200:200A(Ratedcurrent), ＜2.0MA(Leakagecurrent250VAC/50Hz),Fig.8
(Dimension),Fig.2(Electrical schematics),
M10 Stud(Termination),1.9Kg(Weight).
If you want to get information about Dimension and outline drawing, Electrical schematics,Insertion loss(dB),please contact with Filtemc Electronic Equipment Co.,Ltd.
Specifications
AC single phase general series filters
1.Feaures & Applications:
Suppress the eletromagnetic interference on line to line and line to ground effectively.
High performance/price ratio
Suitable for the switching power supply,UPS,automat,embroidery machine.oscillograph,industrial computer,controller,etc.
Rated current:0.5A-200A.
2.Technical data:
Rated voltage:110/250VAC
Test voltage:1760VDC(line to line) and 2000VAC(line to ground).
Climatic category:25/085/21.
Operating frenquency:50/60Hz.
Insulation resistance:＞200MΩ@500VDC.
3.Tabulates
FT110-1:1A(Ratedcurrent),
＜0.5MA(Leakagecurrent250VAC/50Hz),Fig.1(Dimension),
Fig.1(Electrical schematics),Wire(Termination),0.065Kg(Weight).
FT110-3:3A(Ratedcurrent),
＜0.5MA(Leakagecurrent250VAC/50Hz),Fig.1(Dimension),
Fig.1(Electrical schematics),Wire(Termination),0.065Kg(Weight).
FT110-6:6A(Ratedcurrent),
＜0.5MA(Leakagecurrent250VAC/50Hz),Fig.1(Dimension),
Fig.1(Electrical schematics),Wire(Termination),0.065Kg(Weight).
FT110-10:10A(Ratedcurrent),
＜0.5MA(Leakagecurrent250VAC/50Hz),Fig.2(Dimension),
Fig.1(Electrical schematics),Solder lug(Termination),0.075Kg(Weight).
FT111-6:6A(Ratedcurrent), ＜1.0MA(Leakagecurrent250VAC/50Hz),Fig.3/Fig.4
(Dimension),Fig.2(Electrical schematics),
Solder lug and M4 Stud(Termination),0.14Kg(Weight).
FT111-10:10A(Ratedcurrent), ＜1.0MA(Leakagecurrent250VAC/50Hz),Fig.3/Fig.4
(Dimension),Fig.2(Electrical schematics),
Solder lug and M4 Stud(Termination),0.17Kg(Weight).
FT111-20:20A(Ratedcurrent), ＜1.0MA(Leakagecurrent250VAC/50Hz),Fig.3/Fig.4
(Dimension),Fig.2(Electrical schematics),
Solder lug and M4 Stud(Termination),0.17Kg(Weight).
FT111-30:30A(Ratedcurrent), ＜1.0MA(Leakagecurrent250VAC/50Hz),Fig.5
(Dimension),Fig.2(Electrical schematics),
M6 Stud(Termination),0.22Kg(Weight).
FT111-50:50A(Ratedcurrent), ＜2.0MA(Leakagecurrent250VAC/50Hz),Fig.6
(Dimension),Fig.2(Electrical schematics),
M6 Stud(Termination),0.6Kg(Weight).
FT111-100:100A(Ratedcurrent), ＜2.0MA(Leakagecurrent250VAC/50Hz),Fig.7
(Dimension),Fig.2(Electrical schematics),
M8 Stud(Termination),1.38Kg(Weight).
FT111-150:150A(Ratedcurrent), ＜2.0MA(Leakagecurrent250VAC/50Hz),Fig.8
(Dimension),Fig.2(Electrical schematics),
M10 Stud(Termination),1.9Kg(Weight).
FT111-200:200A(Ratedcurrent), ＜2.0MA(Leakagecurrent250VAC/50Hz),Fig.8
(Dimension),Fig.2(Electrical schematics),
M10 Stud(Termination),1.9Kg(Weight).
If you want to get information about Dimension and outline drawing, Electrical schematics,Insertion loss(dB),please contact with Filtemc Electronic Equipment Co.,Ltd.
