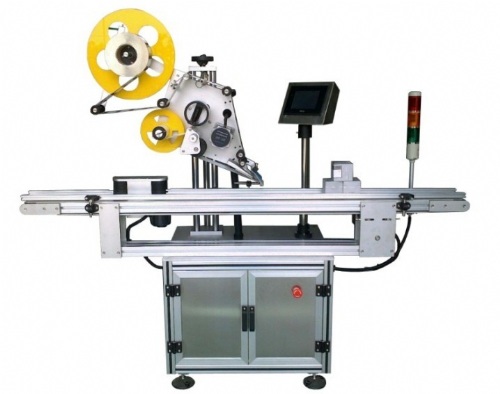

Plane Labeler
Model: DPM-A
Category: Packaging, Printing, Food & Pharmacy Machinery / Food & Pharmacy Machinery / Vertical Packaging Machine
Characteristics
• Full machine adopts the PLC control system technology is mature, the whole stable, high-speed;
• the operating system using touch screen control, easy operation, practical, high efficiency;
• Optional imported servo system, a standard fast and high stability;
• Upgrade disc standard station design, can be tapered bottle label;
• suppression of human institutions screw adjustment, precise movement, easy to operate;
• synchronization chain mechanism to ensure smooth and precise calibration;
• clear label affixed to non-foaming, self-adhesive labels do not wrinkle;
• use a wide range of a machine and adaptable;
Specifications
Model DPM-A
Output (pcs / min) 50-120 (speed and size of the label box size)
Into the box from the left side into the right
The standard system, servo system
The standard speed (m / min) ≤ 35
Size Glassine backing paper for labels, transparent or opaque
Label roll diameter (mm) 76mm
Label roll diameter (mm) 350mm or less
Weight (kg) 200
Total motor power (w) 700W
Single-phase power supply AC220V 50/60HZ
Dimensions (mm) 2200 (L) 1500 (W) 1800 (H) mm
