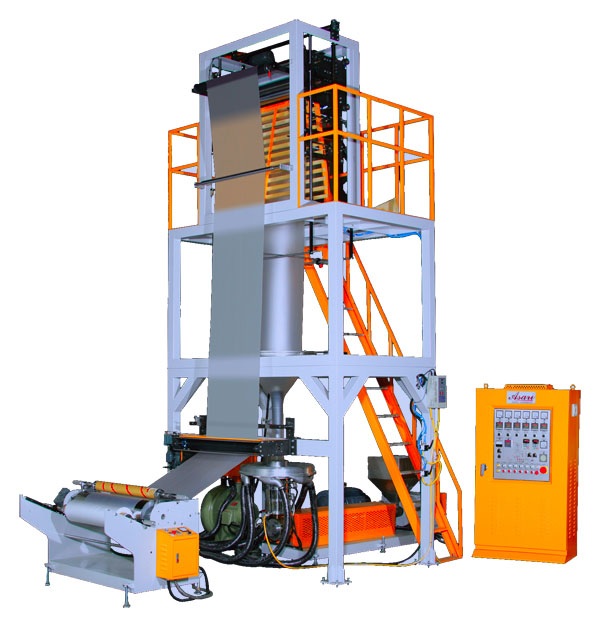

HD/LD High Speed Film Blown Machine
Model: AKB-HD/LD
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Extruders
Characteristics
AKB-HD/LD
HD/LD High Speed Film Blown Machine
Specifications
MODEL |
AKB-HD/LD-45 |
AKB-HD/LD-50 |
AKB-HD/LD-55 |
AKB-HD/LD-65 |
Material |
HD/LDPE |
|||
Thickness |
0.008-0.08mm |
0.008-0.10mm |
0.008-0.12mm |
0.008-0.15mm |
Film Width |
150-600mm |
150-800mm |
250-1000mm |
350-1200mm |
Output |
20-50KG/HR |
25-60KG/HR |
30-70KG/HR |
40-90KG/HR |
Total Power Require |
25KW |
30KW |
34KW |
50KW |
Heater Capacity |
10KW |
10KW |
13KW |
17KW |
Extrusion Motor |
20HP AC |
25HP AC |
30HP AC |
40HP AC |
Screw Diameter |
45 |
50 |
55 |
65 |
Screw Material |
SACM645 |
|||
Screw L/D |
30:1 |
30:1 |
30:1 |
30:1 |
JS1 Gearbox |
3-Axis |
|||
Air Ring |
Aluminum Alloy Air Riing |
|||
Elevating Unit |
