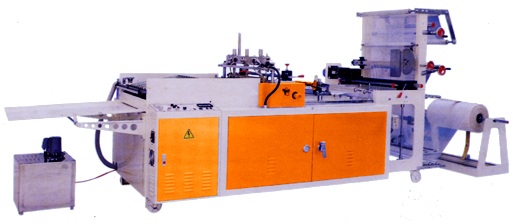

Hot Cutting T-shirt Bag Making Machine
Model: ATH32-V
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Bag Making Machines
Characteristics
ATH32-V
Hot Cutting T-shirt Bag Making Machine
Specifications
Cutting Length |
12”-28” |
Cutting Width |
6”-14” x 2 |
Cutting Thickness |
0.012- 0.025mm |
Output |
40- 398 Bag per min (output varies by size, thickness and etc) |
Length Tolerance |
± 2mm |
Power Required |
6.5Kw |
Main Motor |
AC 2HP x 4P Inverter Control |
Feeding Motor |
AC 1/2HP x 6P Inverter Control |
Conveyor Motor |
AC1/8 HP |
Gripper Motor |
1/2HP Inverter Control |
Servo Motor Length Controlled x 2 |
|
Inverter Speed Controlled |
|
Sealing & Cutting Device |
|
Outfeeding Device, Servo Motor Control |
|
Infeeding Device x 2 |
|
Hot Pin Blocking Device |
|
Cooling Metal Chain Device |
|
Dancing Device, Conveyor Device, Gripper Device |
|
Heavy Duty Type Unwinder With Air shaft |
|
Punching Device |
|
Rear Feeding Sensor x 2 |
|
Obstacle sensor |
|
Printing Photocell x 2 |
|
Auto-Stopping device in case Insufficient Temperature/Bag Jams |
|
Auto-stopping device in case of no Material |
