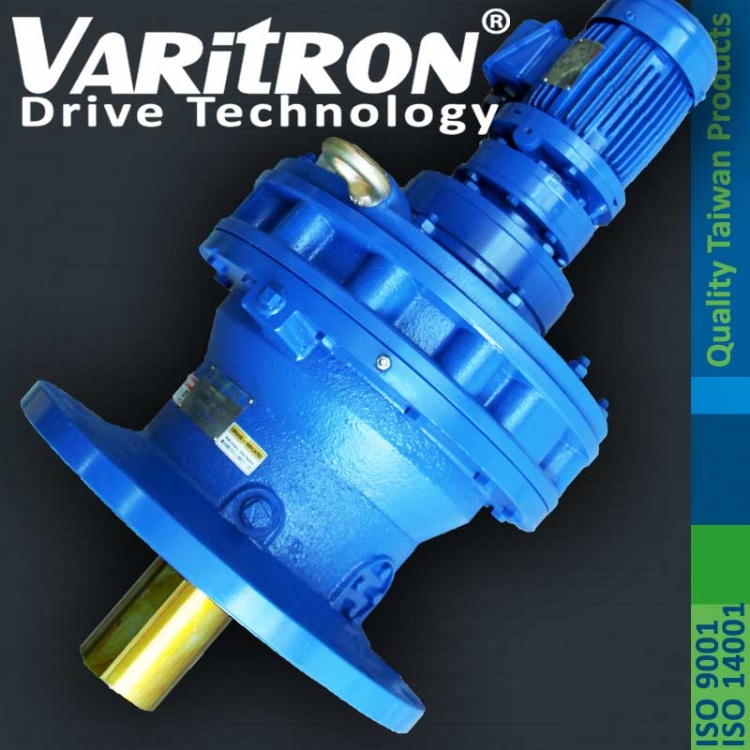

Vertical Flange Mounting Cycloid Gear Reducer
Model: VM, VX
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Speed Reducers
Characteristics
Taiwan C. Varitron Cycloidal Speed Reducer delivers the features today’s industry needs. High reduction ratios, without sacrificing efficiency. Compact designs, without requiring special motors. Exceptional shock load capacity, without having to oversize. Greater overhung load capacities, without using expensive special components. A precision backlash option, without resorting to special gearing. All of this, while requiring minimal maintenance.
• Single stage reduction ratios up to 87:1 saves space
• Rolling motion minimizes friction and wear, reducing heat,resulting in a 95% efficiency rating per stage
• 500% shock load capability as there are only compressive forces rather than shear forces on the tooth
• Low speed of cycloidal wheel results in minimal reflected inertia, less wear, and extremely long service life
• Due to the large overall “tooth / pin” contact area, select a Reducer using smaller mechanical service factors
Horizontal,vertical, double shaft, motor mount and others
W/AC,DC, Servo, Brake, Hydraulic, Air Explosion Motor
Motor provided is 100% Taiwan made with CE & ISO cert.
Ideal for stop/start and reversing operation
Brakes can be added
Cycloidal Reducers' bearings uses KOYO, NTN, SKF, NSK
Flange diamentions or shaft can be coustomise.
Ideal reducers,gearbox to meet your speed transmission needs.
Same foot mounting as Sumitomo
Specifications
<< More Information is Available upon Request >>
Quality Cycloid Gear Reducer reducer by Varitron from TAIWAN
Vertical Flange Mounting Cycloid Gear Reducer
Product Description
The VARITRON Cyclo drive reducer unique Cyclo drive reducer design has advantages superior to common involute tooth gears system speed reducers.
VARITRON's Cyclo drive reducer matchless performance and reliability is that 67% of the reduction components are in contact at all times, compared to helical gear and planetary gear designs that use only limited tooth contact. Unlike geared designs, the Varitron's reduction components operate in compression rather than shear, which results to withstand shock loads exceeding ratings of 500%, provide exceptional performance, reliability and long life in most severe applications.
Main Features
- Involute gear has slip contact with less contact ratio
- Varitron Cyclo drive reducer has smooth rolling contact
- Durable and Long Service Life
The gear tooth profile of the VARITRON Cyclo drive reducer enables the sharing of the load by a number of teeth, thus not susceptible to tooth breakage. At least 66% of ring gear rollers and cycloid disc loves share the shock load under compression. In addition, major torque transmission components inside the VARITRON Cyclo drive reducer are made of 52100(JIS SUJ2) high carbon chromium bearing grade steel hardened to Rockwell Hardness of HRC 61~63 andwith precision grinding. The end result is that VARITRON Cyclo drive reducer are capable of withstanding intermittent shock load up to 500% of its catalog torque rating.
- High Efficiency
Rolling Contact-All major torque transmitting components roll; they do not slide. Rolling motion contributs to minimal frication and high efficiency approaches 93%, anddouble stage efficiency approaches 93%, and double stage efficiency approaches 86%.
- Simple Maintenance
Lifetime grease lubrication or easy-to-replenish oil lubrication.
- Housing
Standard gray cast iron(JIS FC25) iron provides rigid structural integrity. Optional ductile iron housing(JIS FCD45) available.
- Output Shaft
High Strength Low Alloy Stell(JIS SCM21) with oversized bearings for excellent overhung load capacit and outstanding performanc.
- Dual Lips Oil Seal
Keeps lubricant in; keeps dirt out. (for flange model 8165 and above double dual lips oil seal on output side)
- Side Window (Oil Lubricate Models)
For easy oil level and clarity reading. Installing side can assign on ordering. Markers also on the side window to show how mcuk oil to fill.
- BREATHER FILLER CAP
Large oil filler hole. Oil cap also functions for pressure release purpose.
- Drain Plugs (Oil Lubricated Models)
Magnetic drain plugs design to prevent any steel dust from bearingor gear when wear in the oil. Drain plugs on double side for simple oil replavement.
Cyclo drive reducer Construction Drawing
Cyclo drive reducer Model
Cyclo drive reducer Operation Direction
Quick Facts
| Model Number | Vertical Flange Mounting Cycloid Gear Reducer |
| Speed Reduction Method | Internal planetary gear mechanism with trochoidal curved tooth profile design speed reduction |
| Efficiency | 95% per stage gear box (Rolling motion minimizes friction and wear, reducing heat) |
| Shock Load | 500% as there are only compressive forces rather than shear forces on the tooth |
| Gear Box Mounting | Flange or Foot mounting |
|
Gear Reduction Ratio |
Up to 1:87 per stage 1:7569 Double stage 1:658,503 Triple Stage |
| Capacity Range | 0.1 to 75kW * 4Pole / 0.37 to 132kW * 6Pole |
| Enclosure | Totally enclosed fan cooled type IP54 or IP55 |
| Power Source | Three Phrase 200-480V 50/60Hz (single phrase 0.2 to 3.7kW) |
| Thermal Class | F Class , H Class |
| Time Rating | Continuous Rating |
|
Gear Box Lubrication Method |
Grease lubricated or Oil Lubricated (oil Pump lubrication avaliable) |
| Method of Coupling with Driven Machine | Coupling, gears, chain sprocket or belt |
| Standard | CE, UL, CSA, CCC, ISO 9001, ISO 14001 |
| Warranty | 1 Year Limited Warranty |
Cyclo drive reducer How to order
