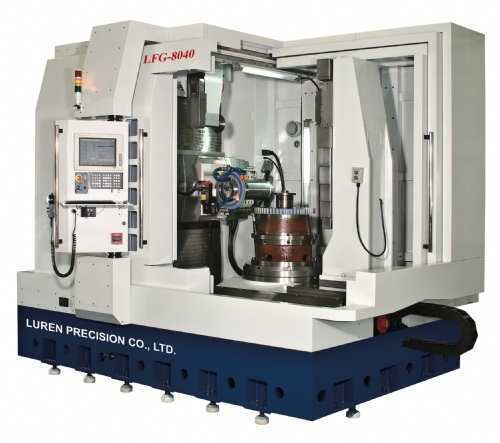

VERTICAL GEAR PROFILE GRINDING MACHINE
Model: LFG-8040
Category: Machine Tools / Grinding Machines / CNC Grinding Machines
Characteristics
As business and marketing build with information technology(IT) ,the new materials for gear profile grinder engineering coming have no boundary.
The new technology
•new machine controls integral with industrial personal computer.
•direct driven torque motor.
•motor build-in spindle ,etc.
guarantee Luren gear profile grinding machine LFG-8040 to achieve the highest accuracy and favorable price which can be hardly by using technology of years past.
As a gear supplier expect to produce high precision gears even have no well trained technician and engineer. Luren respond customer request and accept this challenge , we developed unique dialog software for supporting the entire machining process.
Operator input the required technical data step by step on windows based user oriented interface, programming training is not necessary because all the grinding process’s NC program are generated automatically.
Specifications
Max. work-piece diameter 800 mm
Center distance between rotary table and grinding wheel 190~650 mm
Number of teeth 3~999
Max. Module M20
Profile depth 2~50 mm
Helix angle ±45°
Max. grinding slide 400mm(450 mm)
Max. table load (with fixture） 2,500 kg
Table diameter 740 mm
Max. grinding wheel diameter 400 mm
Min. dressable diameter of the grinding wheel 280 mm
Max. grinding wheel thickness 60mm(90 mm)
Max. grinding spindle speed 4,000 rpm
Max. drive power of grinding spindle 15kW
Tailstock center height above rotary table 600~1,300 mm
Machine weight 15,000 kg
Space requirement (Length ×Width ×Height ) 6,400 mm×5,700 mm×4,200 mm
