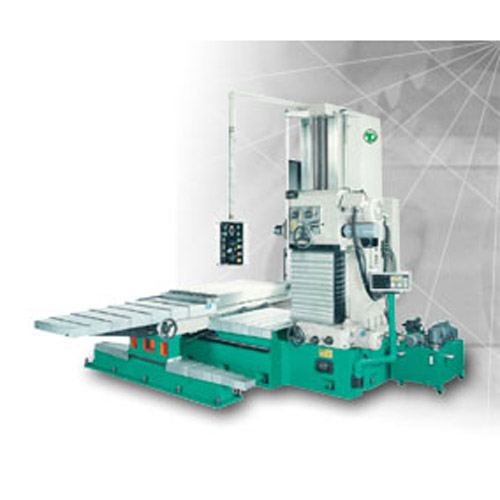

BED TYPE BORING MILLING MACHINE
Model: TC-CB90
Category: Machine Tools / Boring Machines / CNC Boring Machines
Characteristics
Operating
Adopted with mono electrical switch and magnetic clutch, etc to make the precise operation more easily, for example, in easy movement of working table, base and spindle.
Besides, the clamping device can be fixed a required position for simple and convenient application.
High precision & stiffness
Made of top quality, rigid structure, & FC-30 iron materil with the utmost precision. The test bar of 300mm can reach to the rangeof micron, and all machine surface & table are treated by hardening and finishing.
Boring
The selective switches are deviced to make boring operation more stable. With large base to support the big workpiece, it can bear weight more than 1000kgs. Most suitable for boring in wide working surface.
Milling
It is most suitable for vertical milling, angular milling, drilling, boring, diesinking, jig boring, etc. all different milling works. The had wheel is mounted at convenient place for operating to drive the table
Specifications
Work table size:1300*800mm
X axis travel:1800mm
Y axis travel:1180mm
Z axis travel:1400mm
V/H Spindle taper:N.T50
Spindle speed:45-1500(12step)
Spindle motor:7.5hp
