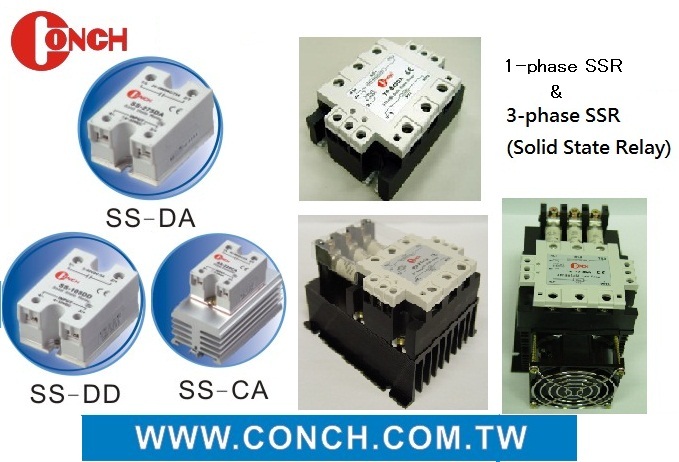

Solid State Relay
Model: SS-DA, SS-DD, SS-AA, SS-VA, TS-DA, TS-AA
Category: Plastic and Rubber Industry / Rubber Processing Machinery / Parts for Rubber Processing Machines
Characteristics
Mono-Phase SSR (Solid State Relay)
1. SS-DA (DC to AC type)
2. SS-DD (DC to DC type)
3. SS-AA (AC to AC type)
4. SS-VA (VR phase control)
3-Phase SSR (Solid State Relay)
1. DC to AC type
2. AC to AC type
Specifications
Mono-Phase SSR (Solid State Relay)
1. SS-DA (DC to AC type)
2. SS-DD (DC to DC type)
3. SS-AA (AC to AC type)
4. SS-VA (VR phase control)
3-Phase SSR (Solid State Relay)
DC to AC type
1. Rated Load Current: 10A, 25A, 40A, 50A, 75A, 100A
2. Input Current: 6~10mA
3. Input Control Range: 6~32VDC
4. 4KV Insulation Strength
5. Zero-crossing Trigger
6. Equipped with Snubber Circuit.
7. Operating Voltage: 24~280VAC / 48~480VAC
8. Dimension: 103.5(L) x 78.0(W) x 38.0(H) mm
AC to AC type
1. Rated Load Current: 10A, 25A, 40A, 50A, 75A, 100A, 125A
2. Input Control Range: 80~280VAC
3. 4KV Insulation Strength.
4. Zero-crossing trigger.
5. Equipped with Snubber Circuit.
6. Operating Voltage: 24~280VAC / 48~480VAC
7. Dimension: 103.5(L) x 78.0(W) x 38.0(H) mm
